Takeuchi

TB025

Mini Excavator

Operating Weight
5,958 lb
Max Digging Depth
102 in
Net Power
26.0 hp
All mini excavators

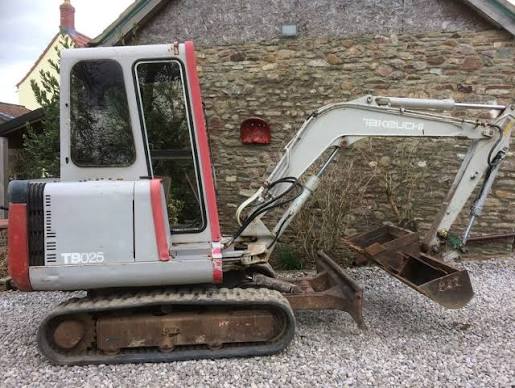

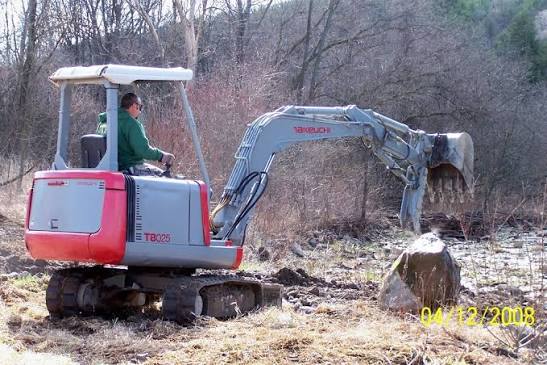

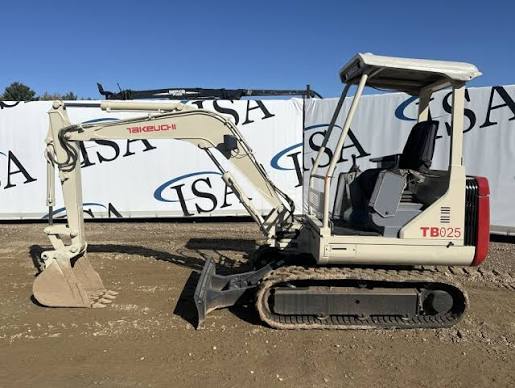

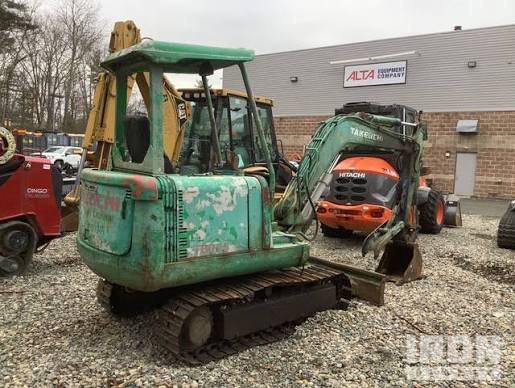

Takeuchi TB025 Mini Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,958 lb
Fuel Capacity7.6 gal
Hydraulic Pump Flow Capacity12.6 gal/min
Hydraulic System Fluid Capacity21.7 gal
Hydraulic System Relief Valve Pressure2,845 psi

Engine

Engine specifications
Displacement91 in³
Power Measured @2,450 rpm
Net Power26.0 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground55 in
Tail Swing Radius52 in
Width to Outside of Tracks57 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side3
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth102 in
Max Reach Along Ground175 in
Max Vertical Wall Digging Depth78 in
Max Loading Height114 in
Max Cutting Height162 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
