Takeuchi

TB035

Mini Excavator

Operating Weight
7,625 lb
Max Digging Depth
122 in
Net Power
33.0 hp
All mini excavators

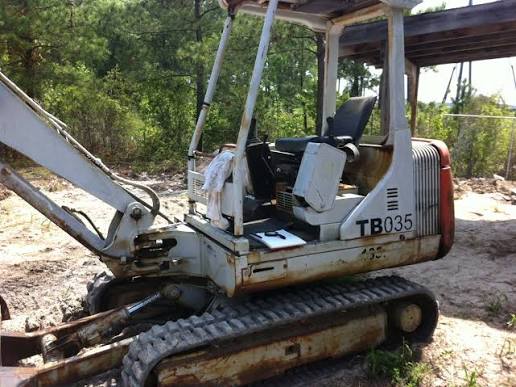

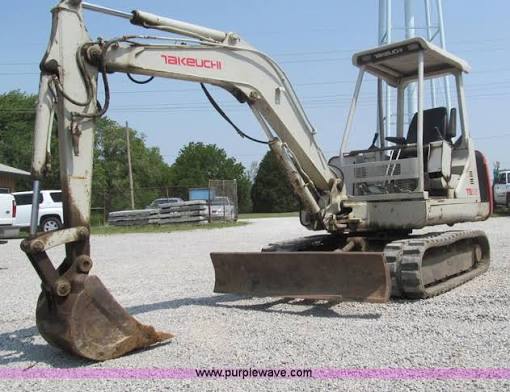

Takeuchi TB035 Mini Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,625 lb
Fuel Capacity8.9 gal
Hydraulic Pump Flow Capacity19.4 gal/min
Hydraulic System Relief Valve Pressure2,845 psi

Engine

Engine specifications
Displacement87 in³
Power Measured @2,600 rpm
Net Power33.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground64 in
Tail Swing Radius56 in
Width to Outside of Tracks65 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side4
Shoe Size14 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth122 in
Max Reach Along Ground198 in
Max Vertical Wall Digging Depth94 in
Max Loading Height134 in
Max Cutting Height190 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
