Takeuchi

TB108

Mini Excavator

Operating Weight
2,033 lb
Max Digging Depth
66 in
Net Power
9.6 hp
All mini excavators

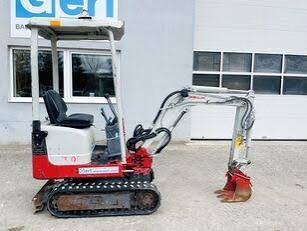

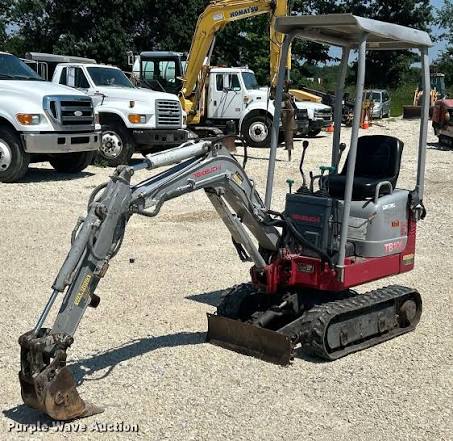

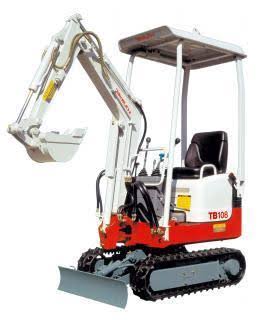

Takeuchi TB108 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,033 lb
Fuel Capacity2.5 gal
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Fluid Capacity4.1 gal
Hydraulic System Relief Valve Pressure2,288 psi
Operating Voltage12 V
Alternator Supplied Amperage9 A
Engine Oil Capacity0.4 gal
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine Model2TNV70
Displacement35 in³
Power Measured @2,400 rpm
Net Power9.6 hp
Number of Cylinders2
Torque Measured @1,800 rpm
Max Torque25 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab84 in
Length of Track on Ground36 in
Tail Swing Radius32 in
Width to Outside of Tracks30 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side2
Max Travel Speed2.4 mph
Shoe Size7 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth66 in
Max Reach Along Ground114 in
Max Vertical Wall Digging Depth54 in
Max Loading Height84 in
Shipping Length of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
