Takeuchi

TB125

Mini Excavator

Operating Weight
6,165 lb
Max Digging Depth
114 in
Net Power
22.5 hp
All mini excavators

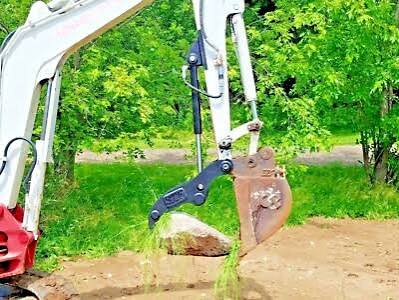

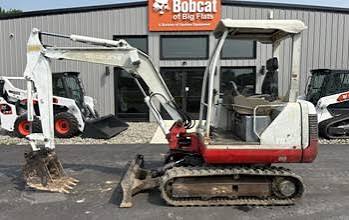

Takeuchi TB125 Mini Excavator
1 / 5
Image 1 of 5
Image: fiveborotoolrental.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,165 lb
Fuel Capacity13.4 gal
Hydraulic Pump Flow Capacity15.4 gal/min
Hydraulic System Fluid Capacity19.6 gal
Hydraulic System Relief Valve Pressure2,987 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity1.0 gal

Engine

Engine specifications
Engine Model3TNV82-QTB1
Displacement81 in³
Power Measured @2,300 rpm
Net Power22.5 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque62 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground59 in
Tail Swing Radius52 in
Width to Outside of Tracks57 in
Removal Counterweight Clearance12 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Max Travel Speed3.0 mph
Shoe Size12 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth114 in
Max Reach Along Ground186 in
Max Vertical Wall Digging Depth90 in
Max Loading Height126 in
Shipping Length of Unit179 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
