Takeuchi

TB135

Mini Excavator

Operating Weight
7,831 lb
Max Digging Depth
134 in
Net Power
27.8 hp
All mini excavators

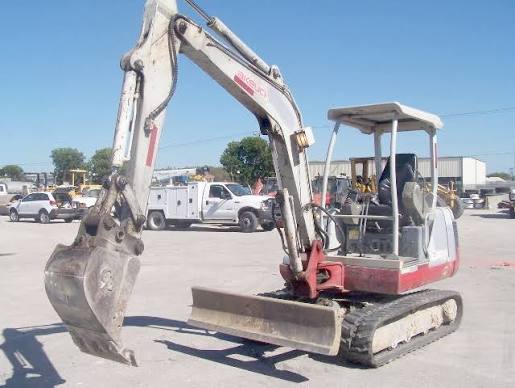

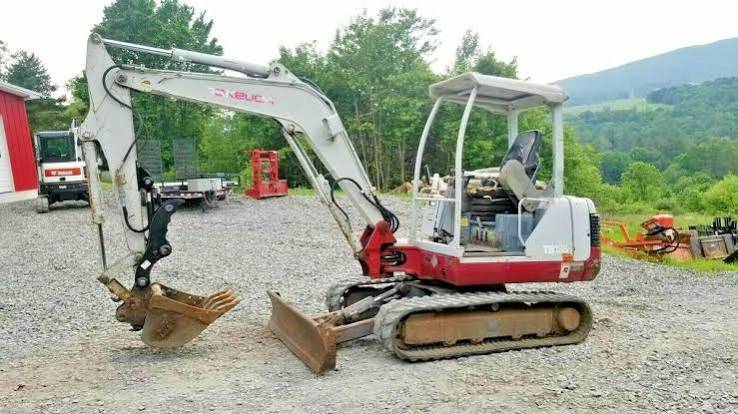

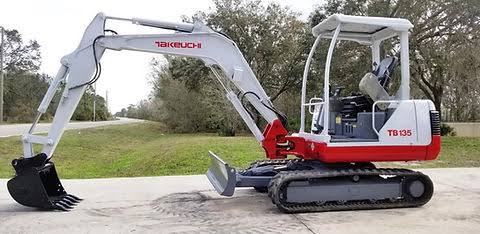

Takeuchi TB135 Mini Excavator
1 / 5
Image 1 of 5
Image: fiveborotoolrental.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,831 lb
Fuel Capacity13.5 gal
Hydraulic Pump Flow Capacity19.8 gal/min
Hydraulic System Fluid Capacity22.5 gal
Hydraulic System Relief Valve Pressure3,000 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.3 gal
Cooling System Fluid Capacity1.5 gal

Engine

Engine specifications
Engine Model3TNV88-QTB
Displacement100 in³
Power Measured @2,300 rpm
Net Power27.8 hp
Number of Cylinders3
Torque Measured @1,400 rpm
Max Torque79 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab96 in
Length of Track on Ground66 in
Tail Swing Radius55 in
Width to Outside of Tracks65 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size14 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground210 in
Max Vertical Wall Digging Depth103 in
Max Loading Height150 in
Shipping Length of Unit199 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
