Tata Hitachi

EX40

Mini Excavator

Operating Weight
9,039 lb
Max Digging Depth
134 in
Net Power
40.0 hp
All mini excavators

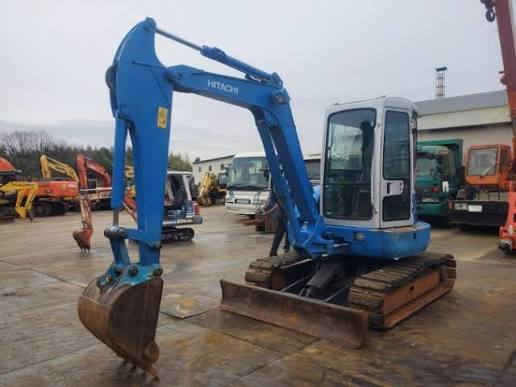

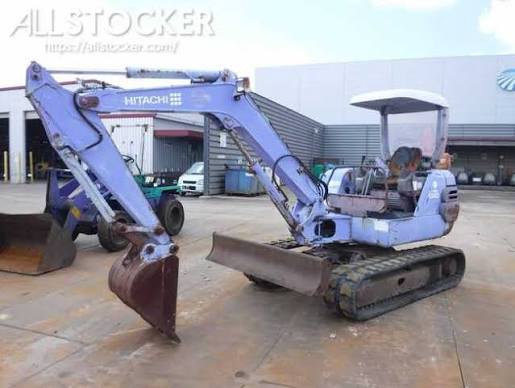

Tata Hitachi EX40 Mini Excavator
1 / 5
Image 1 of 5
Image: tatahitachi.co.in

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,039 lb
Fuel Capacity14.6 gal
Hydraulic Pump Flow Capacity2.8 gal/min
Hydraulic System Fluid Capacity16.4 gal
Hydraulic System Relief Valve Pressure3,840 psi
Engine Oil Capacity1.6 gal
Cooling System Fluid Capacity2.0 gal

Engine

Engine specifications
Engine ModelTATA 4SP
Power Measured @2,100 rpm
Net Power40.0 hp
Max Torque123 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab100 in
Length of Track on Ground77 in
Tail Swing Radius57 in
Width to Outside of Tracks73 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge57 in
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Vertical Wall Digging Depth107 in
Max Loading Height163 in
Shipping Length of Unit215 in
Max Cutting Height229 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
