Tata Hitachi
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Std Operation Weight - Total | 30,953 lb |
|---|---|
| Tire Size | 13x24 (12PR) |
| Fuel Capacity | 76.7 gal |
| Std Operation Weight - Front Axle | 10,825 lb |
| Std Operation Weight - Rear Axle | 20,128 lb |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Tandem Case Fluid Capacity (each) | 11.4 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Transmission Fluid Capacity | 5.6 gal |
| Circle Gearbox Fluid Capacity | 2.4 gal |
| Rear Diff/Final Drive Fluid Capacity | 5.6 gal |
Engine
| Engine Model | 6 A 5.9-C |
|---|---|
| Displacement | 359 in³ |
| Aspiration | Turbocharged |
| Max Power | 140.0 hp |
| Net Power Gear 4-6 | 140.0 hp |
Hydraulic System
| Pump Flow | 52.9 gal/min |
|---|---|
| Pump Type | fully hydraulic with load sensing gear pump and closed centre COMPCHECK control valve |
| Relief Valve Pressure | 2,756 psi |
Dimensions
| Wheelbase | 246 in |
|---|---|
| Overall Length | 335 in |
| Width Over Tires | 98 in |
| Height to Top of Isomount Cab | 132 in |
| Blade Base | 145 in |
| Tandem Axle Wheelbase | 61 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 17.9 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | ZF ERGOPOWER automatic gear shift |
Front Axle
| Wheel Lean | 48 ° |
|---|---|
| Oscillation - Total | 19 ° |
| Ground Clearance | 24 in |
Steering System
| Turning Radius | 288 in |
|---|

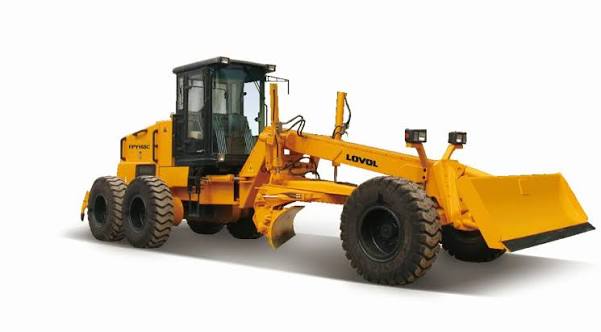

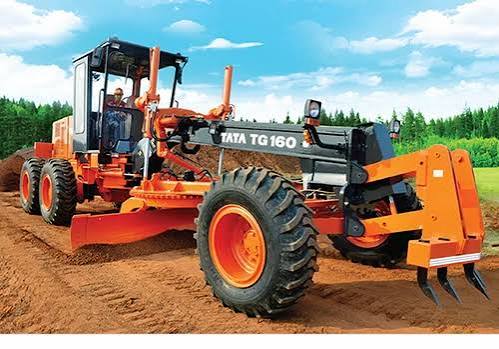

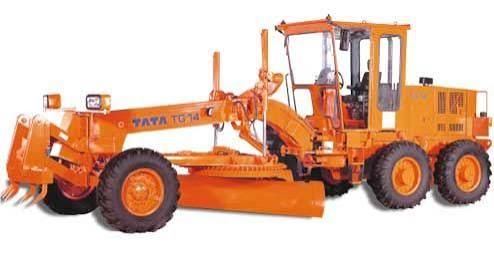

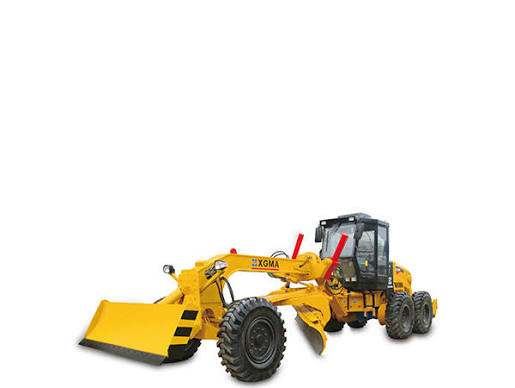

Comparable machines
