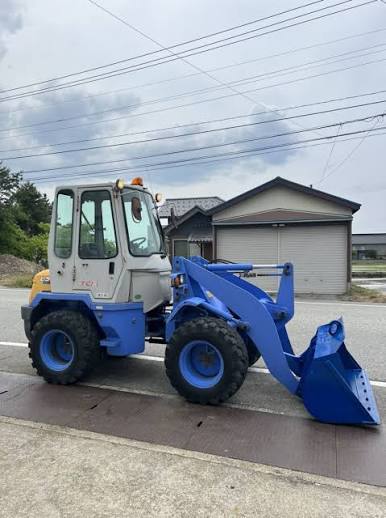

TCM
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight | 7,198 lb |
|---|---|
| Fuel Capacity | 13.3 gal |
| Tire Size | 15.5/60 18-8 PR L2 |
| Static Tipping Weight | 4,542 lb |
Engine
| Engine Model | D1503-DI-T-K2A |
|---|---|
| Net Power | 36.5 hp |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 76 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 175 in |
Transmission
| Max Speed - Forward | 9.4 mph |
|---|---|
| Max Speed - Reverse | 9.4 mph |
| Transmission Type | powershift |
Bucket
| Bucket Capacity - heaped | 0.71 yd³ |
|---|---|
| Dump Clearance at Max Raise | 97 in |
| Bucket Width | 67 in |

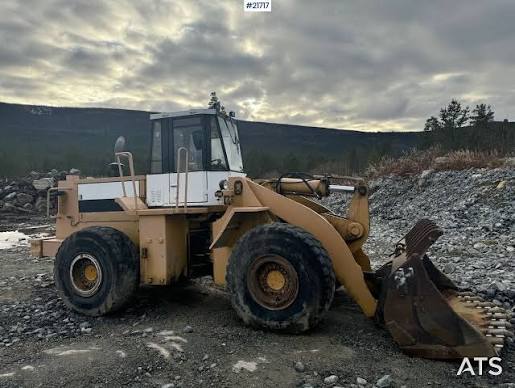

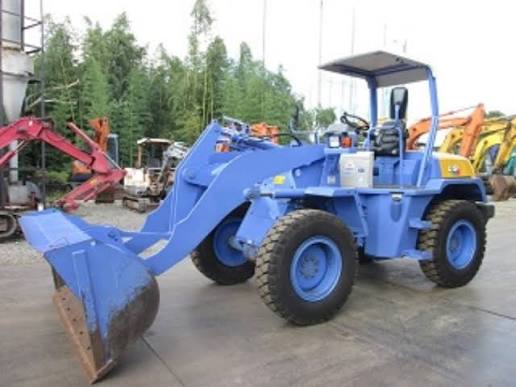

Comparable machines
