Terex

1604LC

Excavator

Operating Weight
50,706 lb
Max Digging Depth
221 in
Max Digging Depth
241 in
Net Power
165.0 hp
All excavators

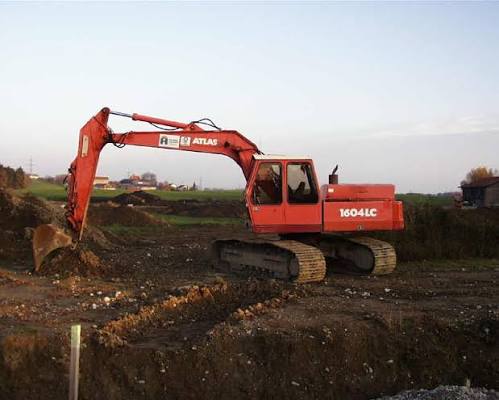

Terex 1604LC Excavator
1 / 5
Image 1 of 5
Image: businessclaud.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,706 lb
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity79.3 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure4,931 psi
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBF6M 2012 C
Displacement292 in³
Power Measured @2,200 rpm
Gross Power194.0 hp
Net Power165.0 hp
AspirationTurbocharging/intercooler

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Tail Swing Radius102 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Track Gauge88 in
Max Travel Speed2.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth221 in
Max Cutting Height371 in

Bucket

Bucket specifications
Reference Bucket Capacity1.60 yd³
Maximum Bucket Capacity1.60 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth241 in
Max Cutting Height384 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth229 in
Max Cutting Height356 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth248 in
Max Cutting Height367 in
Max Reach Along Ground371 in
