Terex

AC 140

All Terrain Crane

Gross Power
530.0 hp
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

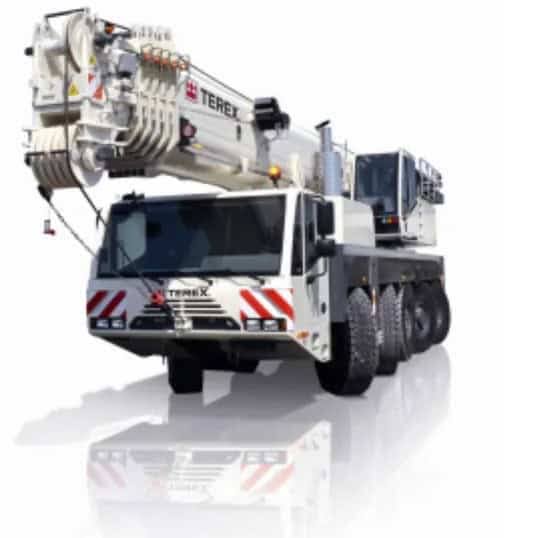

Terex AC 140 All Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight132,277 lb
Tire Size14.00R25
Carrier Fuel Capacity132.1 gal
Operating Voltage24 V
Number of Axels5
Upper Structure Fuel Capacity60.8 gal

Dimensions

Dimensions specifications
Transport Width119 in
Transport Height158 in
Transport Length559 in
Width w/ Outriggers Extended296 in
Carrier Length486 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS-Tronic electronically automated transmission
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib2,442 in
Min Height @ Max Raise Angle592 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius2,126 in
Height3,660 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power530.0 hp
Max Torque1,770 lb-ft
Torque Measured @1,300 rpm
MakeTerex
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power175.0 hp
MakeTerex
Max Torque498 lb-ft
Torque Measured @1,600 rpm
Power Measured @2,200 rpm
