Terex

AC 80-2

All Terrain Crane

Gross Power
380.0 hp
Max Speed - Forward
49.8 mph
Transport Width
109 in
All all terrain cranes

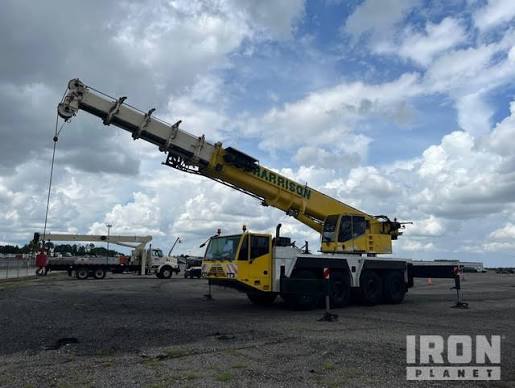

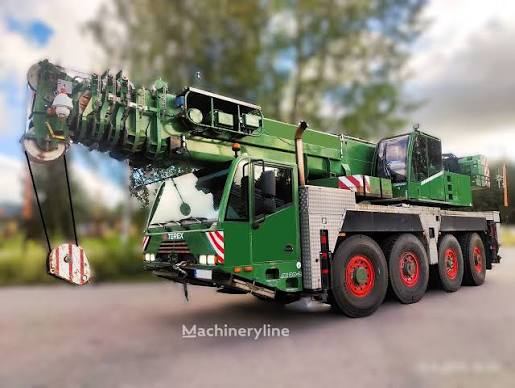

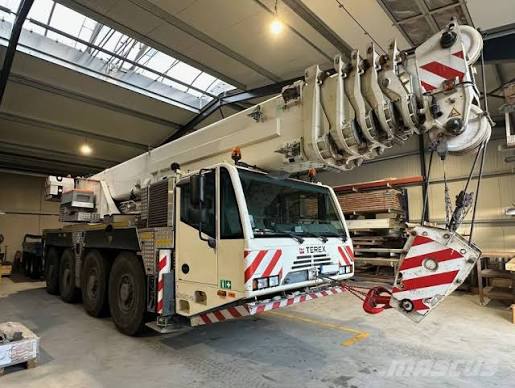

Terex AC 80-2 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight105,822 lb
Tire Size14.00R25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width109 in
Transport Height150 in
Transport Length478 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius146 in
Carrier Length394 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Max Speed - Reverse6.9 mph
Transmission TypeAllison Automatic Transmission

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib2,115 in
Min Height @ Max Raise Angle504 in
Max Elevating Angle82 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius1,654 in
Height2,664 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power380.0 hp
Max Torque1,309 lb-ft
Torque Measured @1,200 rpm
MakeTerex
Power Measured @2,100 rpm
Number of cylinders8
