Terex

HR2.0

Mini Excavator

Operating Weight
4,409 lb
Max Digging Depth
91 in
Net Power
18.0 hp
All mini excavators

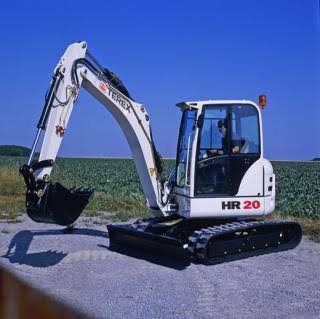

Terex HR2.0 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,409 lb
Fuel Capacity8.0 gal
Hydraulic Pump Flow Capacity15.4 gal/min
Hydraulic System Fluid Capacity9.3 gal
Hydraulic System Relief Valve Pressure2,610 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelL3E-W 262 KL
Displacement58 in³
Power Measured @2,400 rpm
Net Power18.0 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque40 lb-ft

Dimensions

Dimensions specifications
Ground Clearance7 in
Tail Swing Radius48 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.6 mph
Shoe Size9 in
Drawbar Pull3,375 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth91 in
Max Reach Along Ground166 in
Max Vertical Wall Digging Depth39 in
Max Loading Height103 in
Max Cutting Height143 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth100 in
Max Cutting Height148 in
Max Loading Height108 in
Max Vertical Wall Digging Depth46 in
Max Reach Along Ground173 in
