Terex

RT 1000

Rough Terrain Crane

Operating Weight
116,588 lb
Max Lift Capacity
220,462 lb
Max Speed - Forward
24.8 mph
Gross Power
275.0 hp
All rough terrain cranes

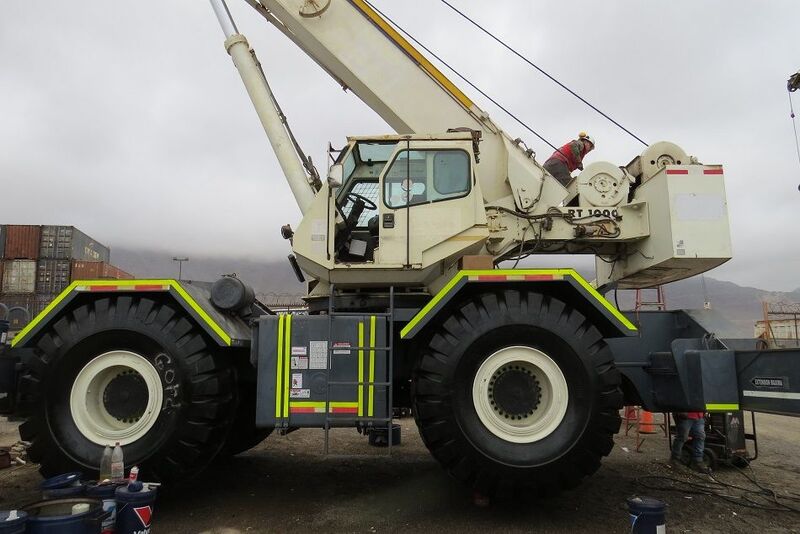

Terex RT 1000 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: thecraneclub.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight116,588 lb
Fuel Capacity80.0 gal
Tire Size32.25 x 29 - 32 P.R.
Operating Voltage24 V
Hydraulic System Fluid Capacity303.0 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6CTA8.3L
Displacement505 in³
Power Measured @2,200 rpm
Gross Power275.0 hp
Net Power260.0 hp
AspirationTurbocharged & Charge air cooled
Torque Measured @1,300 rpm
Max Torque828 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase13 in
Transport Width148 in
Transport Height162 in
Transport Length583 in
Width w/ Outriggers Extended326 in
Carrier/Base Length347 in

Transmission

Transmission specifications
Max Speed - Forward24.8 mph
Number of Forward Gears8
Number of Reverse Gears6
Transmission TypePower-Shift Transmission

Boom

Boom specifications
Max Lift Capacity220,462 lb
Max Height @ Max Raise Angle - no jib1,512 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle82 °
Number of Sections4
Swing Speed2 rpm
Height1,512 in
