Terex

RT 160

Rough Terrain Crane

Operating Weight
90,463 lb
Max Lift Capacity
12,000 lb
Gross Power
215.0 hp
All rough terrain cranes

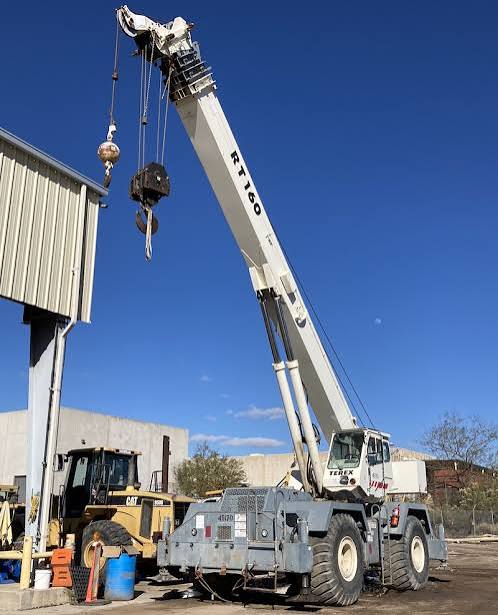

Terex RT 160 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,463 lb
Fuel Capacity80.0 gal
Tire Size29.5 x 25-28 P.R.
Operating Voltage24 V
Hydraulic System Fluid Capacity162.0 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6CT8.3L
Displacement505 in³
Power Measured @2,500 rpm
Gross Power215.0 hp
AspirationTurbocharged
Max Torque558 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase12 in
Transport Width117 in
Transport Height146 in
Transport Length543 in
Width w/ Outriggers Extended284 in
Carrier/Base Length319 in

Transmission

Transmission specifications
Number of Forward Gears6
Number of Reverse Gears3
Transmission TypePower-Shift Transmission

Boom

Boom specifications
Max Lift Capacity12,000 lb
Max Height @ Max Raise Angle - no jib1,380 in
Min Height @ Max Raise Angle408 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
