Terex

RT 175

Rough Terrain Crane

Operating Weight
98,200 lb
Max Lift Capacity
15,000 lb
Gross Power
215.0 hp
All rough terrain cranes

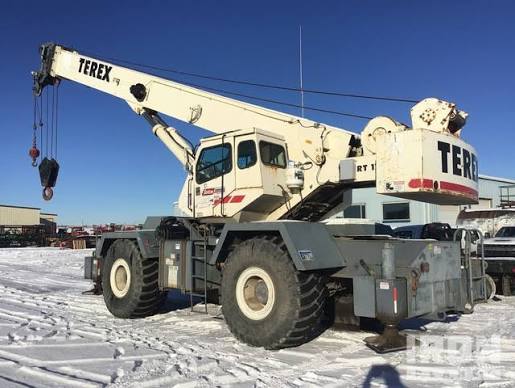

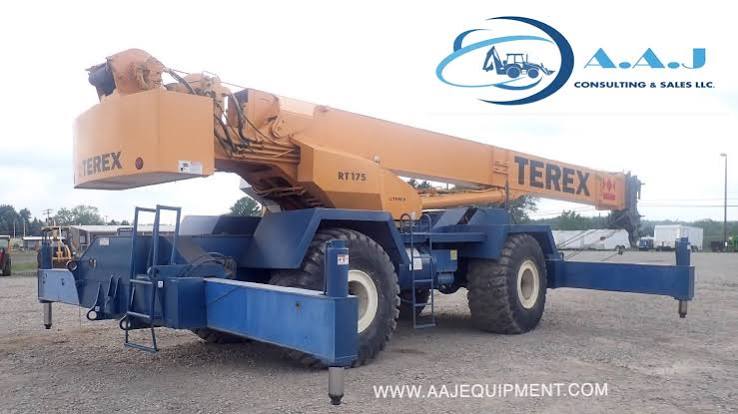

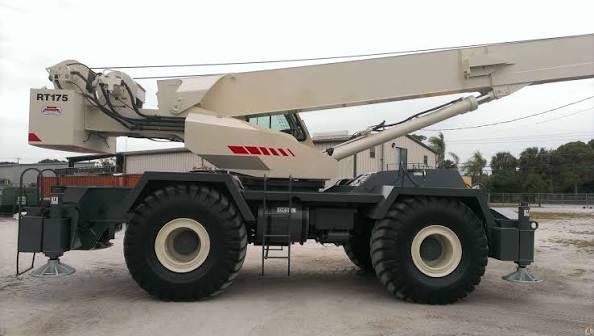

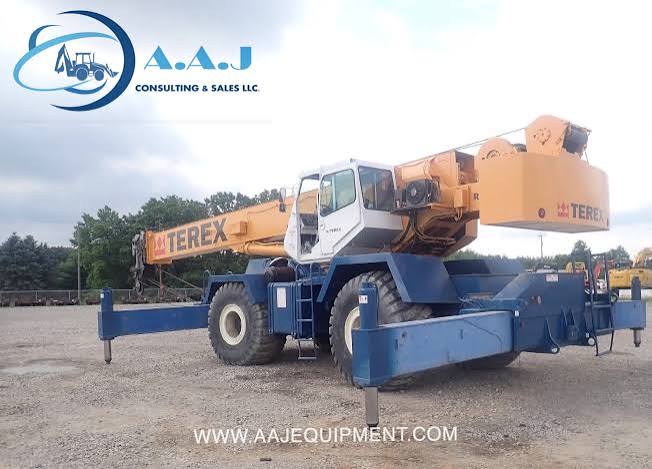

Terex RT 175 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: aajequipment.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight98,200 lb
Fuel Capacity80.0 gal
Tire Size29.5 x 25-28 P.R.
Operating Voltage24 V
Hydraulic System Fluid Capacity177.0 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6CT8.3L
Displacement505 in³
Power Measured @2,500 rpm
Gross Power215.0 hp
AspirationTurbocharged air cooled
Max Torque558 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase13 in
Transport Width117 in
Transport Height152 in
Transport Length584 in
Width w/ Outriggers Extended307 in
Carrier/Base Length331 in

Transmission

Transmission specifications
Number of Forward Gears6
Number of Reverse Gears3
Transmission TypePower-Shift Transmission

Boom

Boom specifications
Max Lift Capacity15,000 lb
Max Height @ Max Raise Angle - no jib1,512 in
Min Height @ Max Raise Angle480 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
