Terex

TA25

Off-Highway Truck

Operating Weight
96,720 lb
Max Speed
32.4 mph
Gross Power
280.0 hp
Net Power
266.0 hp
All off-highway trucks

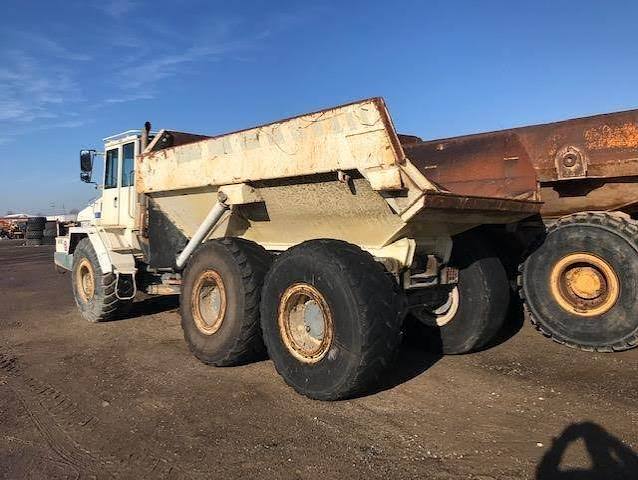

Terex TA25 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity103.1 gal
Tire Size23.5R25
Engine Oil Capacity5.3 gal
Cooling System Fluid Capacity14.6 gal
Hydraulic System Fluid Capacity53.4 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Transmission Fluid Capacity14.3 gal

Engine

Engine specifications
Engine ModelQSC 8.3
Displacement505 in³
Power Measured @2,200 rpm
Gross Power280.0 hp
Net Power266.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,300 rpm
Max Torque907 lb-ft
MakeCummins

Weights

Weights specifications
Operating Weight96,720 lb
Total Empty46,010 lb
Front Axle - empty24,050 lb
Total Loaded96,720 lb
Rear Axle - empty11,070 lb
Front Axle - loaded32,210 lb
Rear Axle - loaded32,410 lb
Center Axle - empty10,890 lb
Center Axle - loaded32,100 lb

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase199 in
Overall Length386 in
Overall Width119 in
Overall Height138 in
Dump Height236 in
Dump Ground Clearance29 in

Transmission

Transmission specifications
Max Speed32.4 mph
Transmission TypeZF 6WG 210
Number of Forward Gears6
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload50,710 lb
Dump Angle65 °
Raise Time12.0 s
Lower Time7.5 s
Capacity - Heaped17.70 yd³
Capacity - Struck13.11 yd³
