Terex

TA300

Off-Highway Truck

Operating Weight
111,303 lb
Max Speed
31.0 mph
Net Power
370.0 hp
All off-highway trucks

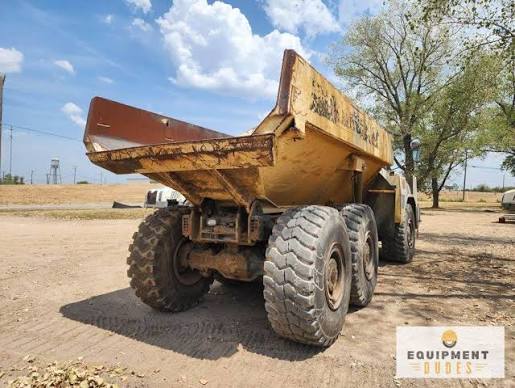

Terex TA300 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity97.7 gal
Tire Size23.5

Engine

Engine specifications
Engine ModelScania DC9
Net Power370.0 hp
Max Torque1,387 lb-ft
MakeScania

Weights

Weights specifications
Operating Weight111,303 lb
Total Empty53,352 lb
Total Loaded115,038 lb

Dimensions

Dimensions specifications
Wheelbase353 in
Overall Length393 in
Overall Width114 in
Overall Height138 in

Transmission

Transmission specifications
Max Speed31.0 mph
Transmission TypeAuto
Number of Forward Gears6
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload68,123 lb
Dump Angle66 °
Raise Time19.5 s
Lower Time19.5 s
Capacity - Heaped11.30 yd³
Capacity - Struck18.00 yd³
