Terex

TA40

Off-Highway Truck

Operating Weight
151,579 lb
Max Speed
37.3 mph
Gross Power
450.0 hp
Net Power
437.0 hp
All off-highway trucks

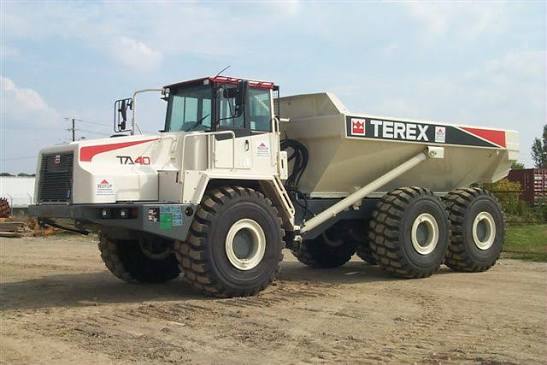

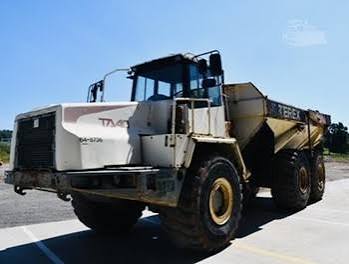

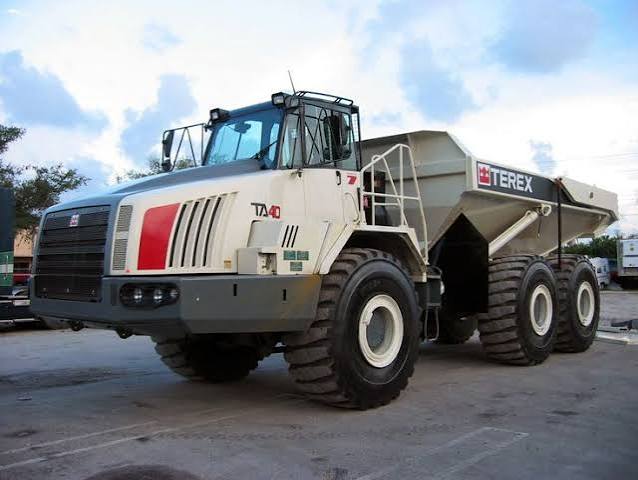

Terex TA40 Off-Highway Truck
1 / 5
Image 1 of 5
Image: marketbook.ca

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity118.9 gal
Tire Size29.5R25
Engine Oil Capacity8.5 gal
Cooling System Fluid Capacity17.7 gal
Hydraulic System Fluid Capacity87.2 gal
Operating Voltage24 V
Alternator Supplied Amperage100 A
Transmission Fluid Capacity16.2 gal

Engine

Engine specifications
Engine ModelSeries 60
Displacement855 in³
Power Measured @2,000 rpm
Gross Power450.0 hp
Net Power437.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,350 rpm
Max Torque1,548 lb-ft
MakeDetroit Diesel

Weights

Weights specifications
Operating Weight151,579 lb
Total Empty67,804 lb
Front Axle - empty34,936 lb
Total Loaded151,579 lb
Rear Axle - empty16,368 lb
Front Axle - loaded40,304 lb
Rear Axle - loaded55,000 lb
Center Axle - empty16,500 lb
Center Axle - loaded55,000 lb

Dimensions

Dimensions specifications
Ground Clearance36 in
Wheelbase209 in
Overall Length430 in
Overall Width134 in
Overall Height154 in
Dump Height272 in
Dump Ground Clearance36 in
Stowed Width59 in
Stowed Height78 in
Boom Type/SizeAT/40 ft

Transmission

Transmission specifications
Max Speed37.3 mph
Transmission TypeAllison 4500 ORS fully automatic transmission with planetary gearing
Number of Forward Gears6
Number of Reverse Gears1

Tires & Wheels

Tires & Wheels specifications
Tire Size15x15x7

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload83,775 lb
Dump Angle66 °
Raise Time12.5 s
Lower Time8.0 s
Capacity - Heaped30.50 yd³
Capacity - Struck22.80 yd³
