Terex

TA400

Off-Highway Truck

Operating Weight
152,978 lb
Max Speed
41.7 mph
Net Power
444.0 hp
All off-highway trucks

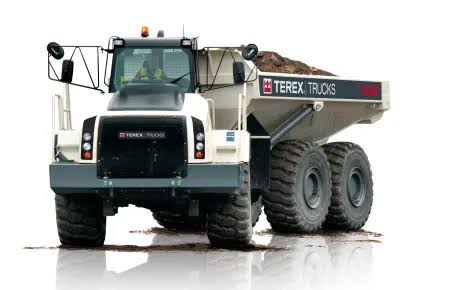

Terex TA400 Off-Highway Truck
1 / 5
Image 1 of 5
Image: meridianleasing.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity130.5 gal
Tire Size29.5

Engine

Engine specifications
Engine ModelScania DC13
Net Power444.0 hp
Max Torque1,663 lb-ft
MakeScania

Weights

Weights specifications
Operating Weight152,978 lb
Total Empty69,203 lb
Total Loaded152,978 lb

Dimensions

Dimensions specifications
Wheelbase383 in
Overall Length437 in
Overall Width135 in
Overall Height148 in

Transmission

Transmission specifications
Max Speed41.7 mph
Transmission TypeAuto
Number of Forward Gears6
Number of Reverse Gears1

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload92,374 lb
Dump Angle66 °
Raise Time20.5 s
Lower Time20.5 s
Capacity - Heaped30.31 yd³
Capacity - Struck22.80 yd³
