Terex

TC35

Mini Excavator

Operating Weight
7,716 lb
Max Digging Depth
134 in
Net Power
32.5 hp
All mini excavators

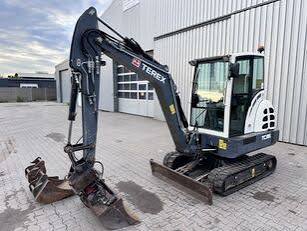

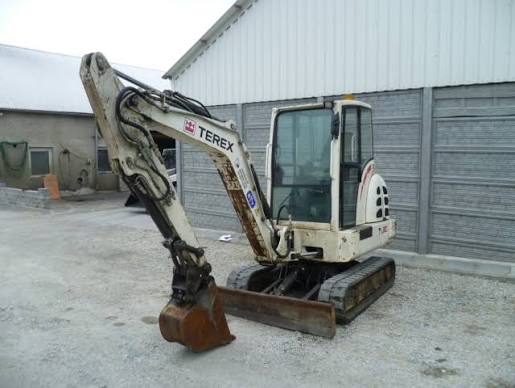

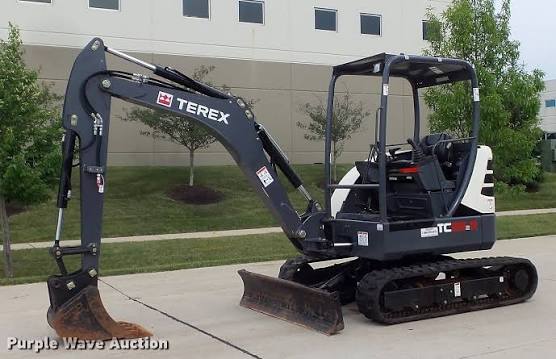

Terex TC35 Mini Excavator
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,716 lb
Fuel Capacity13.8 gal
Hydraulic Pump Flow Capacity26.2 gal/min
Hydraulic System Fluid Capacity24.1 gal
Hydraulic System Relief Valve Pressure3,625 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS 4L
Displacement107 in³
Power Measured @2,100 rpm
Net Power32.5 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Tail Swing Radius52 in
Width to Outside of Tracks60 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge48 in
Max Travel Speed2.9 mph
Shoe Size12 in
Drawbar Pull6,975 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth134 in
Max Reach Along Ground226 in
Max Vertical Wall Digging Depth65 in
Max Loading Height127 in
Max Cutting Height187 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth143 in
Max Cutting Height192 in
Max Loading Height132 in
Max Vertical Wall Digging Depth69 in
