Terex

TC37

Mini Excavator

Operating Weight
8,047 lb
All mini excavators

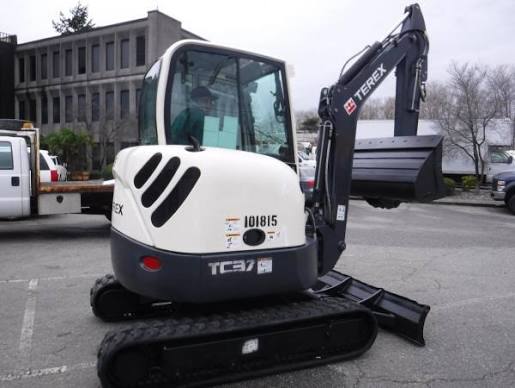

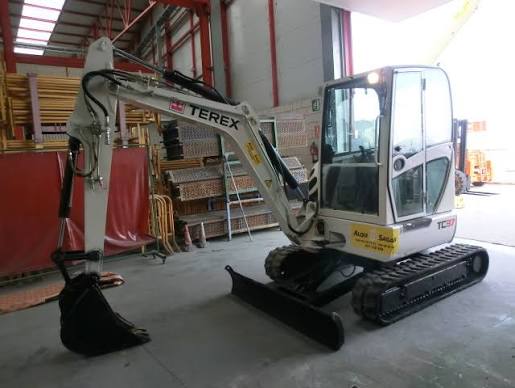

Terex TC37 Mini Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,047 lb
Fuel Capacity17.2 gal
Hydraulic Pump Flow Capacity25.1 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure3,625 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelS4L2
Displacement105 in³
Power Measured @2,100 rpm
Number of Cylinders4
Torque Measured @1,500 rpm
Max Torque77 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Tail Swing Radius36 in
Width to Outside of Tracks72 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge60 in
Max Travel Speed2.9 mph
Shoe Size12 in
Drawbar Pull6,975 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Reach Along Ground222 in
Max Loading Height121 in
Max Cutting Height179 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth133 in
Max Cutting Height183 in
Max Loading Height126 in
