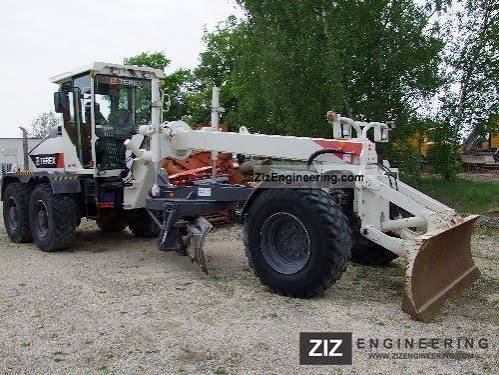

Terex
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Std Operation Weight - Total | 31,967 lb |
|---|---|
| Tire Size | 13.00 -24 TG SGG-2A Goodyear |
| Fuel Capacity | 81.9 gal |
| Std Operation Weight - Front Axle | 9,480 lb |
| Std Operation Weight - Rear Axle | 22,487 lb |
| Hydraulic System Fluid Capacity | 100.0 gal |
| Tandem Case Fluid Capacity (each) | 5.3 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 11.9 gal |
| Alternator Supplied Amperage | 55 A |
| Transmission Fluid Capacity | 4.8 gal |
| Circle Gearbox Fluid Capacity | 1.6 gal |
| Rear Diff/Final Drive Fluid Capacity | 3.9 gal |
Engine
| Displacement | 366 in³ |
|---|---|
| Aspiration | Diesel |
| Max Power | 163.0 hp |
| Net Power Gear 5-6 | 163.0 hp |
Hydraulic System
| Pump Flow | 26.1 gal/min |
|---|---|
| Pump Type | Axial Piston Pump |
| Relief Valve Pressure | 2,669 psi |
Dimensions
| Wheelbase | 234 in |
|---|---|
| Overall Length | 371 in |
| Width Over Tires | 95 in |
| Height to Top of Isomount Cab | 130 in |
| Blade Base | 86 in |
| Tandem Axle Wheelbase | 61 in |
| Front Ground Clearance | 223 in |
| Rear Ground Clearance | 223 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 15.5 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | Auto Power Shift Tansmission With torque Converter |
Moldboard
| Moldboard Height | 19 in |
|---|---|
| Moldboard Width | 144 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 4 in |
| Side Shift Right | 4 in |
| Blade Pull at Max Weight | 25,681 lb |
Circle
| Max Lift Above Ground | 19 in |
|---|---|
| Diameter | 5 in |
Front Axle
| Wheel Lean | 17 ° |
|---|---|
| Oscillation - Total | 15 ° |
| Ground Clearance | 258 in |
Steering System
| Turning Radius | 271 in |
|---|---|
| Articulation Angle | 45 ° |
