Terex

TG190

Motor Grader

Max Power
185.0 hp
Net Power Gear 5-6
185.0 hp
All motor graders

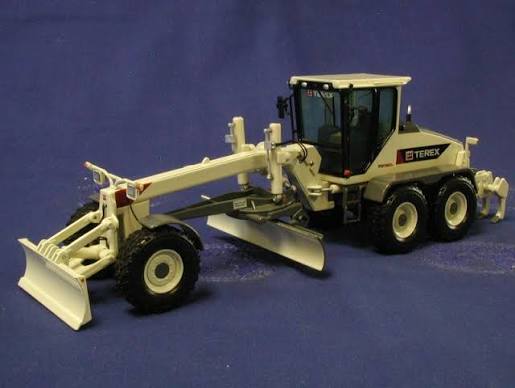

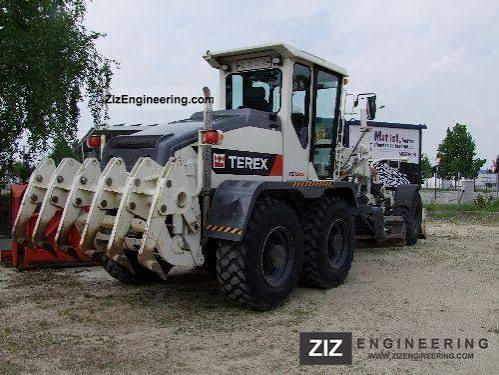

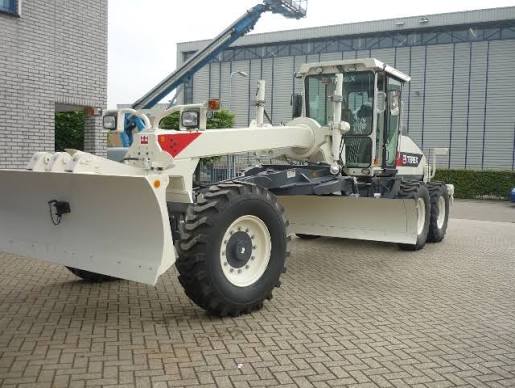

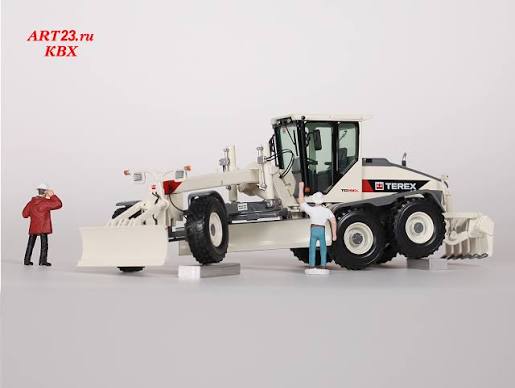

Terex TG190 Motor Grader
1 / 5
Image 1 of 5
Image: m.businessclaud.co.ke

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total41,227 lb
Tire Size14.00 -24TG
Fuel Capacity126.9 gal
Std Operation Weight - Front Axle11,023 lb
Std Operation Weight - Rear Axle30,203 lb
Hydraulic System Fluid Capacity45.0 gal
Tandem Case Fluid Capacity (each)11.1 gal
Operating Voltage24 V
Cooling System Fluid Capacity11.1 gal
Alternator Supplied Amperage55 A
Transmission Fluid Capacity9.0 gal
Circle Gearbox Fluid Capacity1.6 gal

Engine

Engine specifications
Displacement366 in³
Power Measured @2,000 rpm
Number of Cylinders6
AspirationTurbocharged
Max Power185.0 hp
Net Power Gear 5-6185.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow26.1 gal/min
Pump TypeAxial Piston Pump
Relief Valve Pressure2,669 psi

Dimensions

Dimensions specifications
Wheelbase243 in
Overall Length404 in
Width Over Tires98 in
Height to Top of Isomount Cab131 in
Blade Base104 in
Tandem Axle Wheelbase61 in
Front Ground Clearance24 in
Rear Ground Clearance19 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse12.1 mph
Number of Gears - Forward6
Number of Gears - Reverse3
Transmission TypeAuto Power Shift Tansmission With torque Converter

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left49 in
Side Shift Right49 in
Blade Pull at Max Weight21,683 lb

Circle

Circle specifications
Max Lift Above Ground19 in
Max Reach Outside Tires - Left88 in
Max Reach Outside Tires - Right125 in
Diameter60 in

Front Axle

Front Axle specifications
Wheel Lean17 °
Oscillation - Total15 °
Ground Clearance24 in

Steering System

Steering System specifications
Turning Radius296 in
Articulation Angle45 °
