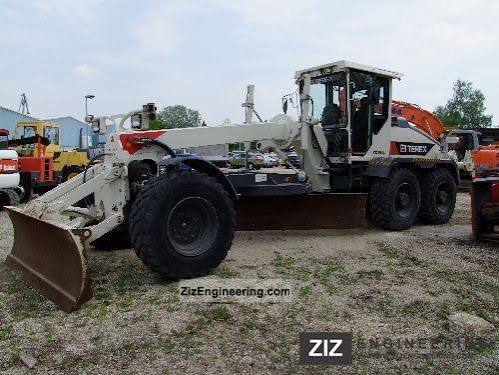

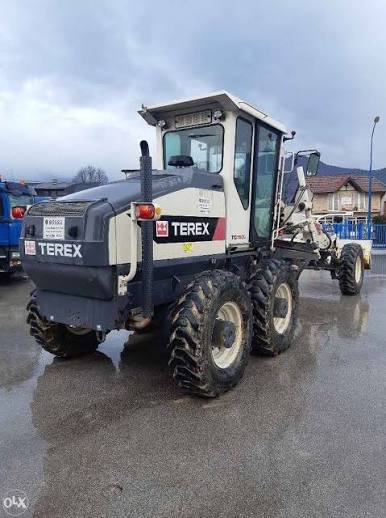

Terex
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Std Operation Weight - Total | 41,266 lb |
|---|---|
| Tire Size | 14.00 -24TG |
| Fuel Capacity | 126.8 gal |
| Std Operation Weight - Front Axle | 11,023 lb |
| Std Operation Weight - Rear Axle | 30,203 lb |
| Hydraulic System Fluid Capacity | 44.9 gal |
| Tandem Case Fluid Capacity (each) | 5.5 gal |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 11.9 gal |
| Alternator Supplied Amperage | 55 A |
| Transmission Fluid Capacity | 9.0 gal |
| Circle Gearbox Fluid Capacity | 1.6 gal |
| Rear Diff/Final Drive Fluid Capacity | 4.0 gal |
Engine
| Displacement | 366 in³ |
|---|---|
| Aspiration | Turbo Charged Water cooled |
| Max Power | 176.0 hp |
| Net Power Gear 5-6 | 176.0 hp |
Hydraulic System
| Pump Flow | 26.1 gal/min |
|---|---|
| Pump Type | Axial Piston Pump |
| Relief Valve Pressure | 2,669 psi |
Dimensions
| Wheelbase | 241 in |
|---|---|
| Overall Length | 404 in |
| Width Over Tires | 97 in |
| Height to Top of Isomount Cab | 131 in |
| Tandem Axle Wheelbase | 61 in |
| Front Ground Clearance | 223 in |
| Rear Ground Clearance | 223 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 12.0 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | Auto Power Shift Tansmission With torque Converter |
Moldboard
| Moldboard Height | 25 in |
|---|---|
| Moldboard Width | 144 in |
| Moldboard Thickness | 1 in |
| Blade Pull at Max Weight | 31,264 lb |
Circle
| Max Lift Above Ground | 4 in |
|---|---|
| Diameter | 5 in |
Front Axle
| Wheel Lean | 17 ° |
|---|---|
| Oscillation - Total | 15 ° |
| Ground Clearance | 280 in |
