403
Wheel Loader
39 specifications
1 / 5

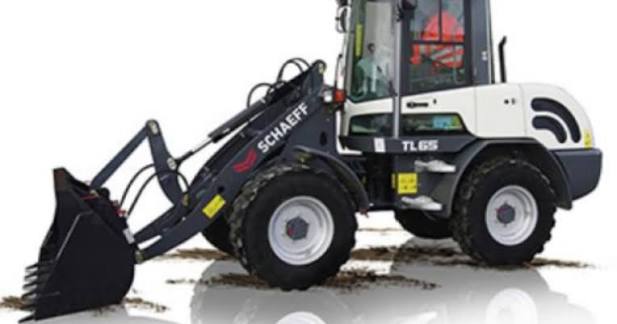

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 9,040 lb |
|---|---|
| Fuel Capacity | 19.9 gal |
| Tire Size | 365/70 R18 EM01 Mitas |
| Hydraulic System Fluid Capacity | 13.0 gal |
| Static Tipping Weight | 6,559 lb |
| Operating Voltage | 12 V |
| Turning Radius | 152 in |
| Rear Axle Oscillation | 24 ° |
| Rated Bucket Capacity | 0.65 – 1.29 yd³ |
Engine
| Engine Model | F4M 2011 |
|---|---|
| Displacement | 189 in³ |
| Power Measured @ | 2,300 rpm |
| Net Power | 50.0 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
| Make | Deutz |
Weights
| Operating Weight | 9,040 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 11.0 gal/min |
|---|---|
| Relief Valve Setting | 3,625 psi |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 103 in |
| Wheelbase | 77 in |
| Width Over Tires | 66 in |
| Reach at Max Lift and Dump | 24 in |
| Length with Bucket on Ground | 189 in |
| Hinge Pin - Max Height | 124 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 8,325 lb |
| Bucket Width | 67 in |
General Specifications
| Operating Weight | 9,040 (4,100) — Starting 2016 Model Year |
|---|---|
| Bucket Capacity | 0.65 to 1.3 (0.5 to 1.0) — Starting 2016 Model Year |
| Engine type | Deutz — Starting 2016 Model Year |
| Engine Power | 50 (36.4) — Starting 2016 Model Year |
| Max Dump Height | 8.2 (2.52) — Starting 2016 Model Year |
