Terex

TR35

Off-Highway Truck

Operating Weight
122,300 lb
Max Speed
36.7 mph
Gross Power
400.0 hp
Net Power
369.0 hp
All off-highway trucks

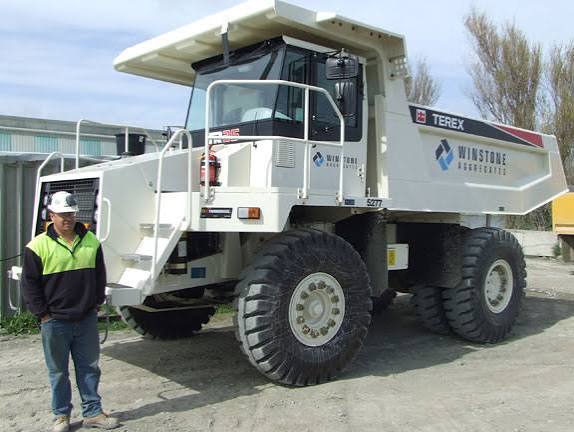

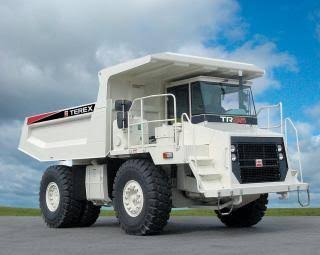

Terex TR35 Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity98.1 gal
Tire Size18.00-25 (32PR) E-3
Engine Oil Capacity9.0 gal
Cooling System Fluid Capacity24.9 gal
Hydraulic System Fluid Capacity32.0 gal
Operating Voltage24 V
Steering System Fluid Capacity12.5 gal
Diff and Final Drive Fluid Capacity15.1 gal

Engine

Engine specifications
Engine ModelQSM11-C400E
Displacement661 in³
Power Measured @2,100 rpm
Gross Power400.0 hp
Net Power369.0 hp
Number of Cylinders6
Max Torque1,400 lb-ft
MakeCummins
Rated Engine Speed32 rpm

Weights

Weights specifications
Operating Weight122,300 lb
Empty Weight52,300 lb
Loaded Weight122,300 lb
Weight Distribution Front - loaded33.0 %
Weight Distribution Rear - loaded67.0 %
Weight Distribution Front - empty48.0 %
Weight Distribution Rear - empty52.0 %

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase143 in
Overall Length316 in
Overall Width158 in
Overall Height154 in
Dump Height272 in
Dump Ground Clearance18 in

Transmission

Transmission specifications
Max Speed36.7 mph
Transmission TypeAllison 4500 RDS
Number of Gears - Forward5
Number of Gears - Reverse1

Drive System

Drive System specifications
Drive Config4x2

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank69,992.4 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle58 °
Raise Time14.0 s
Lower Time9.5 s
Load Capacity - heaped25.40 yd³
Load Capacity - Struck20.10 yd³

Approximate Weights - Flat Floor

Approximate Weights - Flat Floor specifications
Body1,400 lb
