Thomas

25

Mini Excavator

Operating Weight
5,842 lb
Max Digging Depth
115 in
Net Power
26.0 hp
All mini excavators

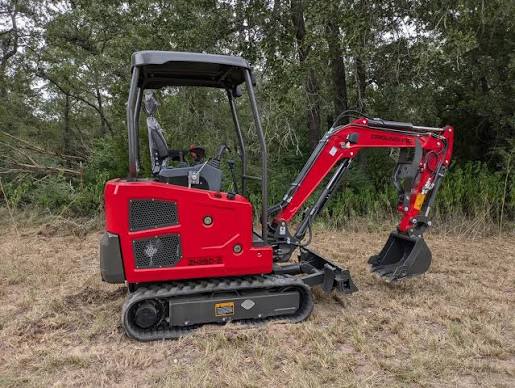

Thomas 25 Mini Excavator
1 / 5
Image 1 of 5
Image: discount-equipment.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,842 lb
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity23.6 gal/min
Hydraulic System Relief Valve Pressure8,461 psi

Engine

Engine specifications
Engine Model3LD1PA-04
Displacement91 in³
Power Measured @2,100 rpm
Net Power26.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab91 in
Length of Track on Ground54 in
Tail Swing Radius54 in
Width to Outside of Tracks59 in

Undercarriage

Undercarriage specifications
Track Gauge47 in
Max Travel Speed2.5 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth115 in
Max Vertical Wall Digging Depth85 in
Max Loading Height127 in
Shipping Length of Unit176 in
Max Cutting Height181 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
