Tigercat

230C

Log Loader

Operating Weight
28,800 lb
Max Lift Capacity Over Front at Ground Level
26,015 lb
Net Power
160.0 hp
All log loaders

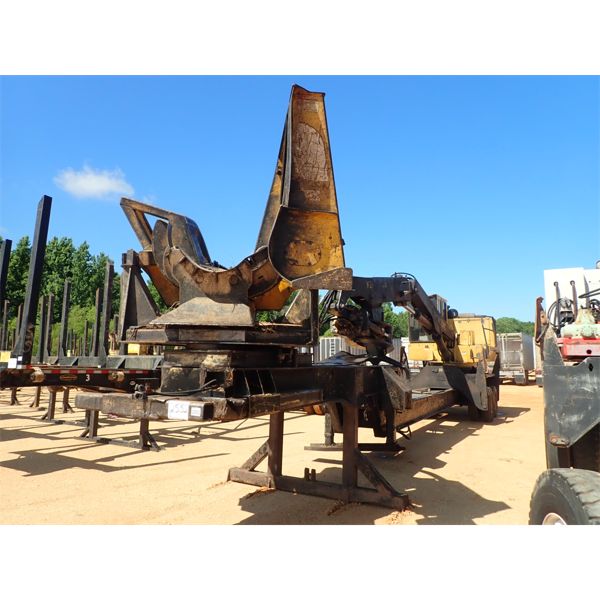

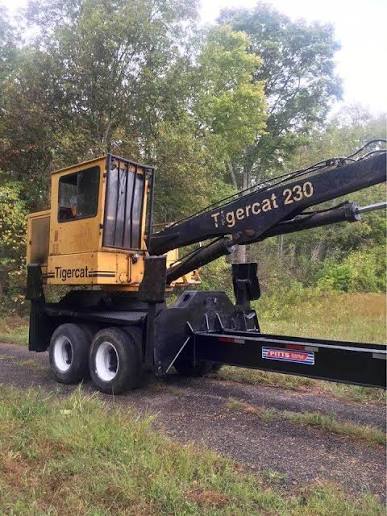

Tigercat 230C Log Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,800 lb
Fuel Capacity99.9 gal
Hydraulic System Fluid Capacity60.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelQSB6.7 Tier III
Net Power160.0 hp

Hydraulic System

Hydraulic System specifications
Pump TypeTriple section gear

Dimensions

Dimensions specifications
Overall Width102 in
Tail Swing Radius96 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Max Lift Capacity Over Front at Ground Level26,015 lb
Max Height300 in
Max Reach at Ground Level360 in
Boom/Stick Option (LGL) 1boom
