Tigercat

860C

Feller Buncher

Operating Weight w/o Attachment
60,252 lb
Gross Power
300.0 hp
All feller bunchers

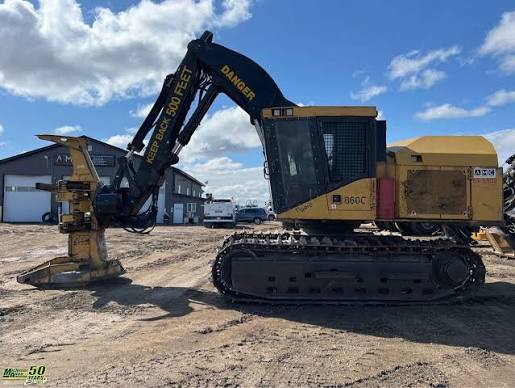

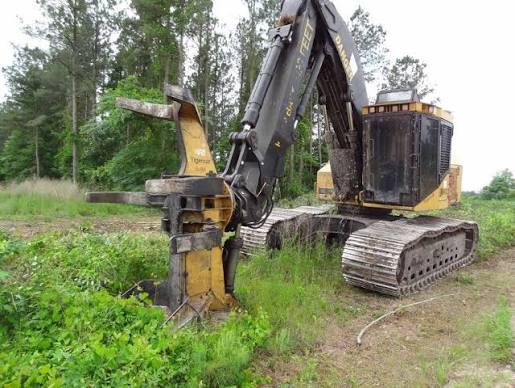

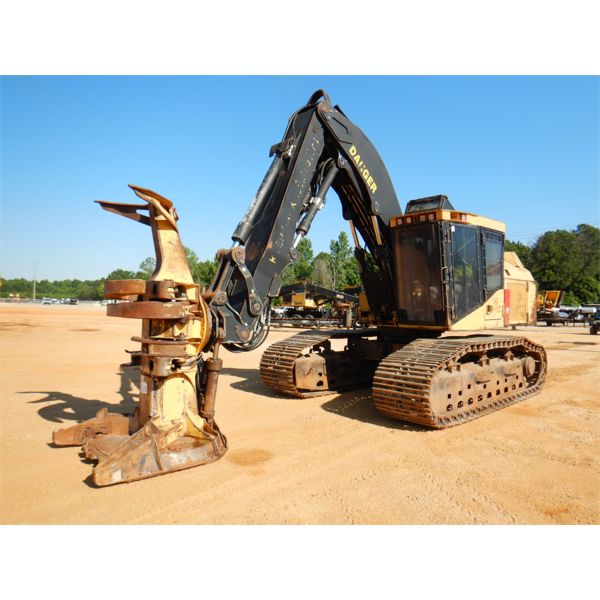

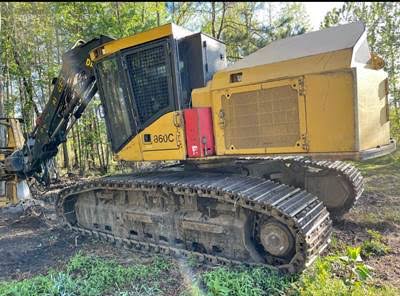

Tigercat 860C Feller Buncher
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment60,252 lb
Fuel Capacity256.3 gal
Operating Voltage24 V
Alternator Supplied Amperage110 A
Hydraulic System Fluid Capacity50.2 gal

Engine

Engine specifications
Engine ModelQSL9
Power Measured @1,800 rpm
Gross Power300.0 hp

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab131 in
Overall Length212 in
Overall Width130 in
Tail Swing Radius57 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Shoe Size24 in
Track Pitch8 in
Tractive Effort60,000 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach13,316 lb
Max Cut Radius333 in
Min Cut Radius190 in
