Tigercat

L845C

Feller Buncher

Operating Weight w/o Attachment
71,606 lb
Gross Power
275.0 hp
All feller bunchers

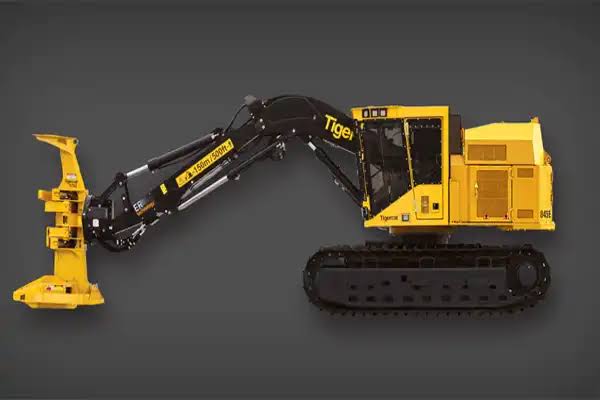

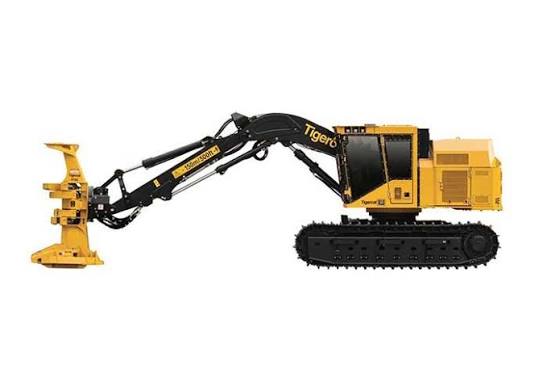

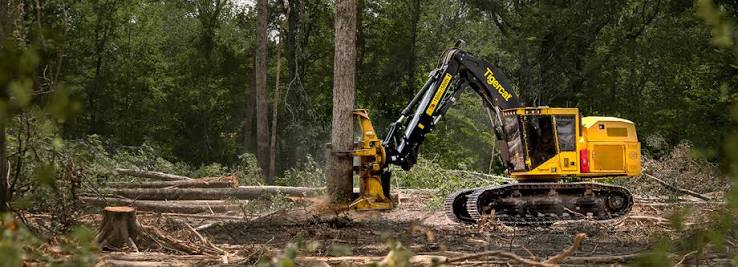

Tigercat L845C Feller Buncher
1 / 5
Image 1 of 5
Image: yumpu.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment71,606 lb
Fuel Capacity256.3 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A
Hydraulic System Fluid Capacity50.2 gal

Engine

Engine specifications
Engine Model906
Power Measured @2,200 rpm
Gross Power275.0 hp

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab146 in
Overall Length196 in
Overall Width135 in
Tail Swing Radius41 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Shoe Size28 in
Track Pitch8 in
Tractive Effort66,000 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach11,398 lb
Max Cut Radius318 in
Min Cut Radius165 in
