Tigercat

L870C

Feller Buncher

Operating Weight w/o Attachment
78,573 lb
Gross Power
300.0 hp
All feller bunchers

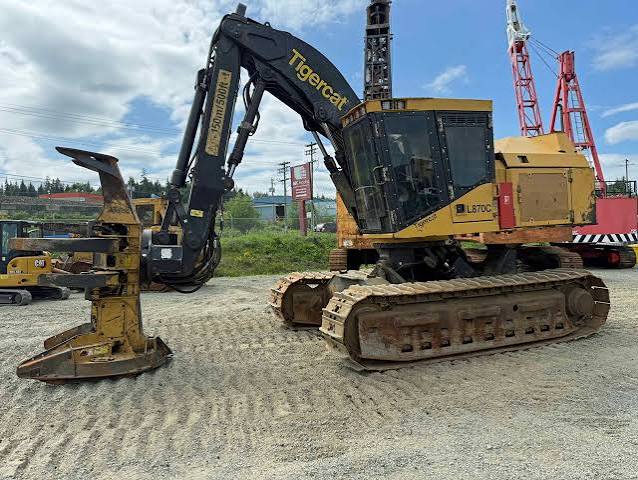

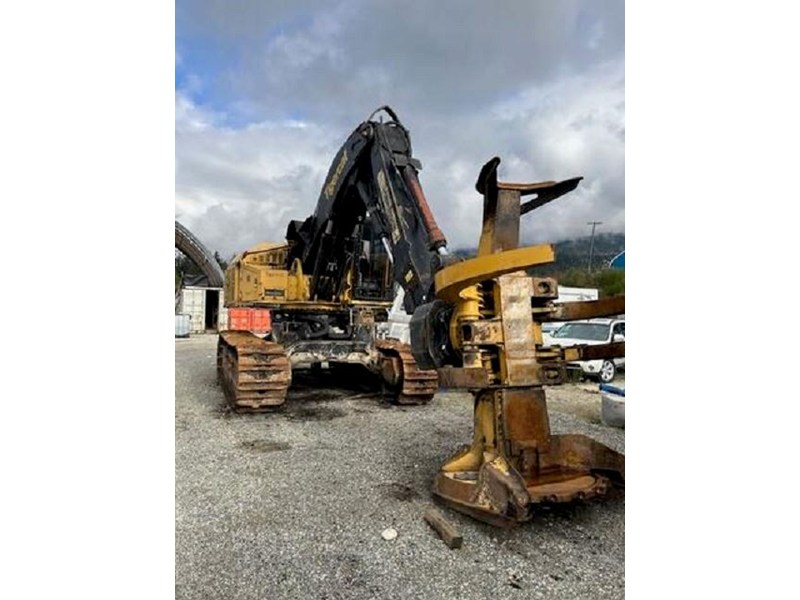

Tigercat L870C Feller Buncher
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment78,573 lb
Fuel Capacity256.3 gal
Operating Voltage24 V
Alternator Supplied Amperage110 A
Hydraulic System Fluid Capacity50.2 gal

Engine

Engine specifications
Engine ModelQSL9
Power Measured @1,800 rpm
Gross Power300.0 hp

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab146 in
Overall Length209 in
Overall Width132 in
Tail Swing Radius56 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Shoe Size24 in
Track Pitch9 in
Tractive Effort73,000 lb

Boom

Boom specifications
Bare Pin Lift at Max Reach13,300 lb
Max Cut Radius333 in
Min Cut Radius190 in

Upperstructure Leveling

Upperstructure Leveling specifications
Front20 °
Side16 °
Rear7 °
