Vermeer

CX219Z

Mini Excavator

Operating Weight
4,189 lb
Max Digging Depth
100 in
Net Power
14.3 hp
All mini excavators

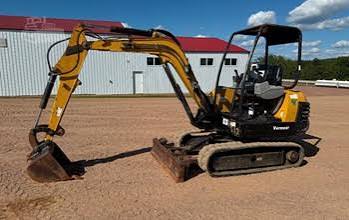

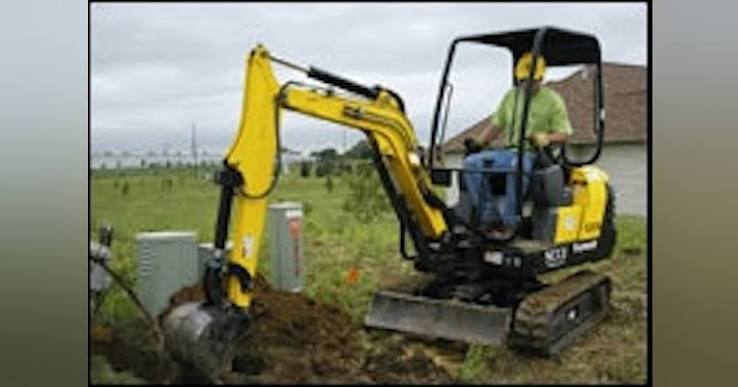

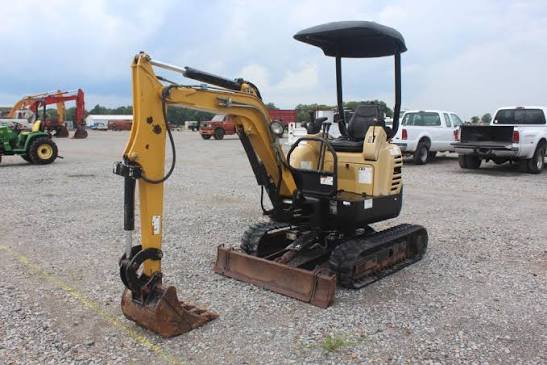

Vermeer CX219Z Mini Excavator
1 / 5
Image 1 of 5
Image: heavy-spec.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,189 lb
Fuel Capacity5.3 gal
Hydraulic Pump Flow Capacity9.6 gal/min
Hydraulic System Fluid Capacity5.3 gal

Engine

Engine specifications
Engine ModelD 722-E Diesel
Displacement44 in³
Power Measured @2,500 rpm
Net Power14.3 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab95 in
Length of Track on Ground44 in
Tail Swing Radius25 in
Width to Outside of Tracks52 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge43 in
Max Travel Speed2.8 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth100 in
Max Reach Along Ground150 in
Max Vertical Wall Digging Depth64 in
Max Loading Height95 in
Max Cutting Height138 in
Shipping Height of Unit95 in
