Vermeer

CX224

Mini Excavator

Operating Weight
5,622 lb
Max Digging Depth
102 in
Net Power
25.0 hp
All mini excavators

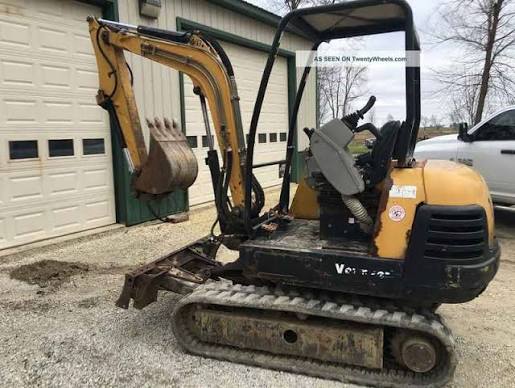

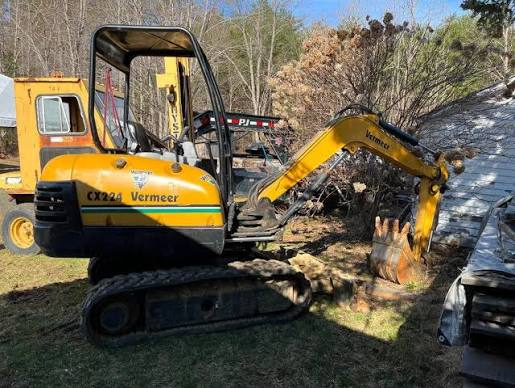

Vermeer CX224 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,622 lb
Fuel Capacity9.6 gal
Hydraulic Pump Flow Capacity14.8 gal/min
Hydraulic System Fluid Capacity11.4 gal

Engine

Engine specifications
Engine ModelV1305-E Diesel
Displacement82 in³
Power Measured @2,500 rpm
Net Power25.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab94 in
Length of Track on Ground73 in
Tail Swing Radius49 in
Width to Outside of Tracks59 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge47 in
Max Travel Speed2.8 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth102 in
Max Reach Along Ground174 in
Max Vertical Wall Digging Depth78 in
Max Loading Height119 in
Max Cutting Height173 in
Shipping Height of Unit94 in
