Vermeer
Volvo
EC20C

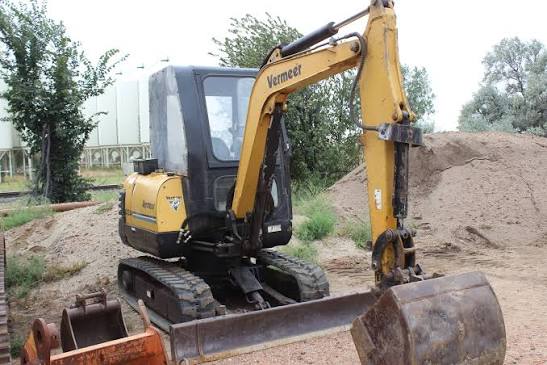

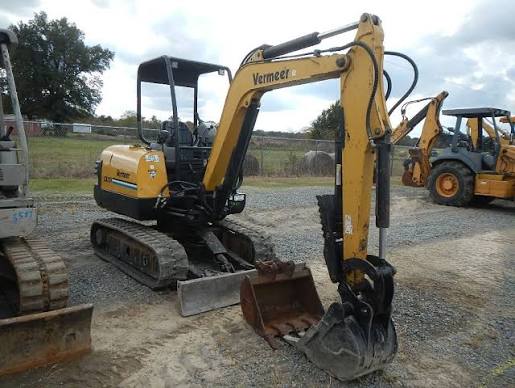

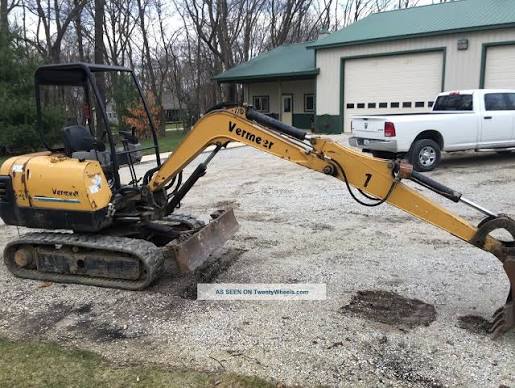

Mini Excavator
3 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 7,055 lb |
|---|---|
| Fuel Capacity | 9.6 gal |
| Hydraulic Pump Flow Capacity | 17.2 gal/min |
| Hydraulic System Fluid Capacity | 16.0 gal |
Engine
| Engine Model | D 1703-E Diesel |
|---|---|
| Displacement | 100 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 32.0 hp |
| Number of Cylinders | 3 |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 94 in |
| Length of Track on Ground | 79 in |
| Tail Swing Radius | 49 in |
| Width to Outside of Tracks | 59 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 47 in |
| Max Travel Speed | 2.5 mph |
| Shoe Size | 12 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 122 in |
|---|---|
| Max Reach Along Ground | 193 in |
| Max Vertical Wall Digging Depth | 96 in |
| Max Loading Height | 131 in |
| Max Cutting Height | 185 in |
| Shipping Height of Unit | 94 in |
