Versatile
New Holland
T6.020
Tractor
26 specifications
Versatile
800
- Operating Weight
- 18,100 lb
- Displacement
- 854 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 235.0 hp
1 / 5

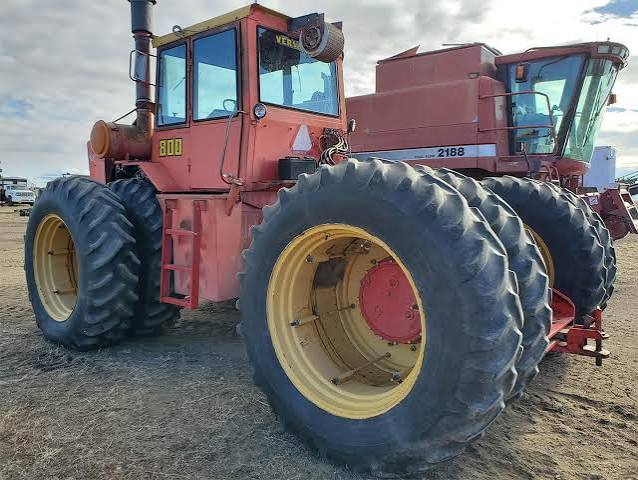

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 18,100 lb |
|---|---|
| Fuel Capacity | 185.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,370 lb |
| 3 Point Hitch Type | III |
| Alternator Supplied Amperage | 75 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 12.3 gal |
| Hydraulic System Fluid Capacity | 18.6 gal |
| Engine Oil Capacity | 10.3 gal |
| Front Tire Size | 24.5x32 |
| Rear Tire Size | 24.5x32 |
Engine
| Engine Model | N-855-C235 |
|---|---|
| Displacement | 854 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 235.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Engine Make | Versatile |
| Stroke | 6 in |
| Bore | 6 in |
| Torque | 660 lb-ft |
Hydraulic System
| Pump Flow Capacity | 23.5 gal/min |
|---|---|
| Number of Remote Control Valves | 4 |
| Hydraulic System Type | Open center |
Dimensions
| Height - Top of Cab | 131 in |
|---|---|
| Wheelbase | 130 in |
| Overall Length | 253 in |
Transmission
| Max Speed - Reverse | 5.3 mph |
|---|---|
| Max Speed - Forward | 14.3 mph |
| Number of Forward Gears | 12 |
| Number of Reverse Gears | 4 |
