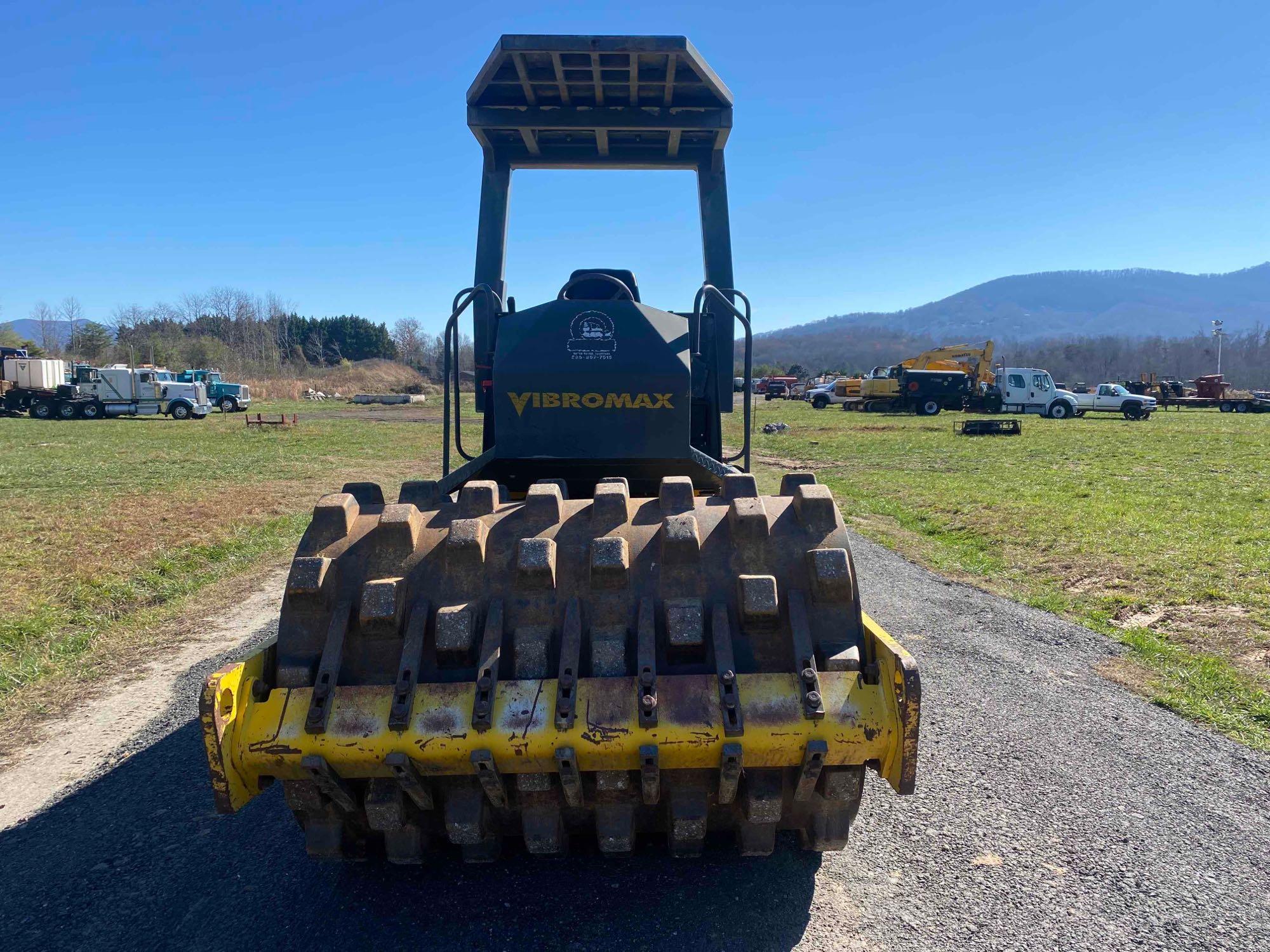

Vibromax
VM66PD
Padfoot Compactor
31 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 14,975 lb |
|---|---|
| Max Speed | 7.2 mph |
| Fuel Capacity | 60.8 gal |
| Operating Width | 74 in |
Engine
| Engine Model | 4B3.9C |
|---|---|
| Displacement | 240 in³ |
| Gross Power | 76.0 hp |
| Make | Cummins |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 9 in |
| Turning Radius - Inside | 117 in |
| Overall Length w/o Blade | 189 in |
Tires & Wheels
| Tires | 14.9x24 6PR |
|---|
Drum
| Drum Width | 69 in |
|---|---|
| Vibration Frequency 1 | 29 vpm |
| Centrifugal Force - High | 18,884 lb |
| Drum Diameter | 43 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 4 in |
| Number of Pads | 96 |
| Vibratory Frequency 2 | 36 vpm |
| Pad Surface Area | 17 in³ |
| Vibration Frequency | — |
