Volvo

A30F

Off-Highway Truck

Operating Weight
112,880 lb
Max Speed
33.0 mph
Gross Power
357.0 hp
Net Power
355.0 hp
All off-highway trucks

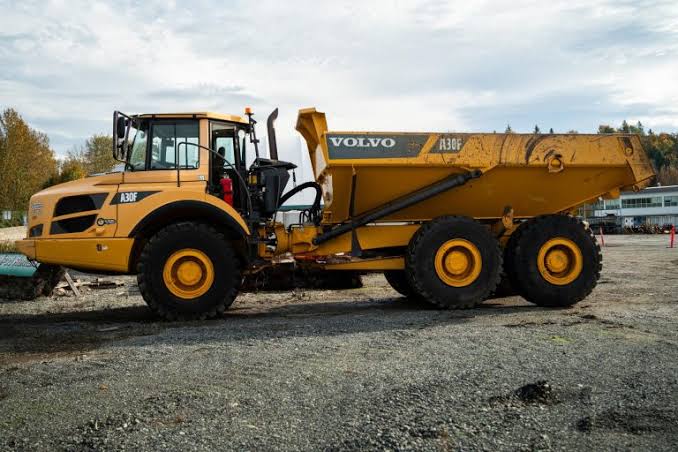

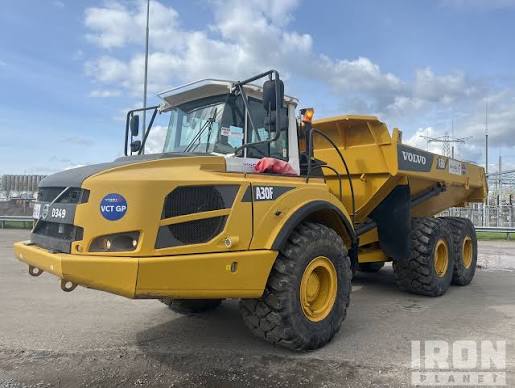

Volvo A30F Off-Highway Truck
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity105.7 gal
Tire Size750/65R25
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity25.1 gal
Hydraulic System Fluid Capacity46.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Transmission Fluid Capacity12.7 gal

Engine

Engine specifications
Engine ModelD11H-A
Displacement610 in³
Power Measured @2,000 rpm
Gross Power357.0 hp
Net Power355.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,200 rpm
Max Torque1,505 lb-ft
MakeVolvo

Weights

Weights specifications
Operating Weight112,880 lb
Total Empty51,147 lb
Front Axle - empty28,329 lb
Total Loaded112,877 lb
Rear Axle - empty22,818 lb
Front Axle - loaded33,841 lb
Rear Axle - loaded79,036 lb

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase198 in
Overall Length406 in
Overall Width117 in
Overall Height135 in
Dump Height259 in
Dump Ground Clearance28 in

Transmission

Transmission specifications
Max Speed33.0 mph
Transmission TypePT2116
Number of Forward Gears6
Number of Reverse Gears2

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload61,729 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped22.90 yd³
Capacity - Struck17.80 yd³
