Volvo
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

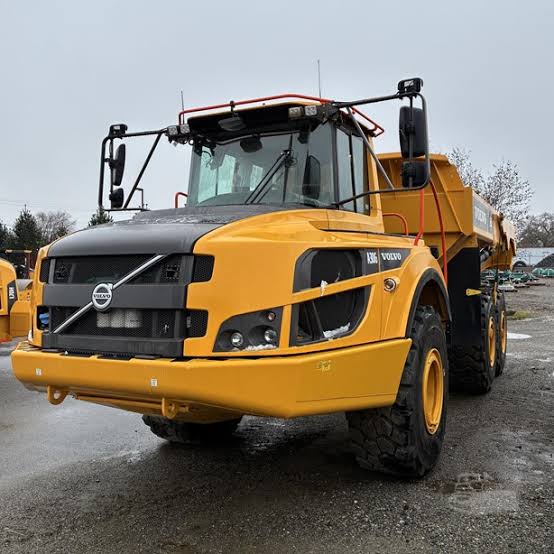

Image 1 of 5
Specifications
60 data points
Operating Specifications
| Fuel Capacity | 100.0 gal |
|---|---|
| Tire Size | 23.5R25 |
Engine
| Engine Model | D11L |
|---|---|
| Displacement | 659 in³ |
| Gross Power | 355.0 hp |
| Net Power | 354.0 hp |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 1,300 lb-ft |
| Make | Volvo |
Weights
| Operating Weight | 113,759 lb |
|---|---|
| Total Empty | 51,368 lb |
| Total Loaded | 115,302 lb |
Hydraulic System
| Maximum system pressure | 3,626 psi |
|---|
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Wheelbase | 109 in |
| Overall Length | 406 in |
| Overall Width | 212 in |
| Overall Height | 133 in |
| Dump Height | 259 in |
| Dump Ground Clearance | 28 in |
Transmission
| Max Speed | 32.8 mph |
|---|---|
| Transmission Type | Auto |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Fluid Capacities
| Fuel Tank | 100.4 gal |
|---|---|
| Cooling system | 12.7 gal |
| Hydraulic Tank | 36.2 gal |
| Transmission | 10.9 gal |
| DEF Tank | 10.4 gal |
| Dropbox | 2.4 gal |
| Brake cooling system | 9.3 gal |
| Crankcase | 9.3 gal |
General Specifications
| Operating Weight lbs (kg) | 115,963 (52,600) Starting 2024 Model Year |
|---|---|
| Engine type | Volvo D11M Starting 2024 Model Year |
| Articulated/Rigid | Articulated Starting 2024 Model Year |
| Drive Configuration | 6x4 and 6x6 Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 32 (29) Starting 2024 Model Year |
| Mfg. Model | A30G Starting 2019 Model Year |
| Drive System Mech/Electr. | M Starting 2019 Model Year |
Drive System
| Drive Config | 6x6 |
|---|---|
| Transmission | PT 2116 |
| Axles | AHW64 |
| Dropbox | IL1 ATC |
| Torque converter | 2.37:1 |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 68,343 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 22.0 s |
| Lower Time | 10.0 s |
| Capacity - Heaped | 23.29 yd³ |
| Capacity - Struck | 18.19 yd³ |
Electrical System
| Alternator | — |
|---|---|
| Starter motor | 9 |
| Battery | 2x12 |
| Battery capacity | — |
| Voltage | — |
Body
| Plate thickness-Front | 0 in |
|---|---|
| Plate thickness-Bottom | 1 in |
| Plate thickness-Chute | 1 in |
| Plate thickness-Sides | 0 in |
