Volvo

A35F

Off-Highway Truck

Operating Weight
138,010 lb
Max Speed
35.0 mph
Gross Power
447.0 hp
Net Power
435.0 hp
All off-highway trucks

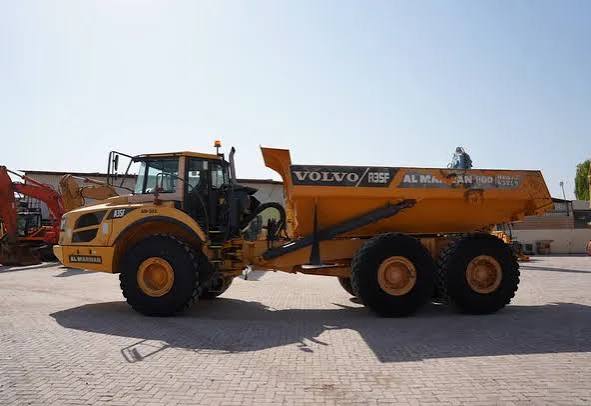

Volvo A35F Off-Highway Truck
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity126.9 gal
Tire Size26.5R25
Engine Oil Capacity13.3 gal
Cooling System Fluid Capacity25.1 gal
Hydraulic System Fluid Capacity69.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Transmission Fluid Capacity12.1 gal

Engine

Engine specifications
Engine ModelD13H-A
Displacement781 in³
Power Measured @1,900 rpm
Gross Power447.0 hp
Net Power435.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,200 rpm
Max Torque1,740 lb-ft
MakeVolvo

Weights

Weights specifications
Operating Weight138,010 lb
Total Empty64,155 lb
Front Axle - empty34,613 lb
Total Loaded138,009 lb
Rear Axle - empty29,542 lb
Front Axle - loaded41,227 lb
Rear Axle - loaded96,783 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase217 in
Overall Length441 in
Overall Width128 in
Overall Height143 in
Dump Height285 in
Dump Ground Clearance36 in

Transmission

Transmission specifications
Max Speed35.0 mph
Transmission TypePT2519
Number of Forward Gears9
Number of Reverse Gears3

Drive System

Drive System specifications
Drive Config6x6

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload73,855 lb
Dump Angle72 °
Raise Time12.0 s
Lower Time10.0 s
Capacity - Heaped26.90 yd³
Capacity - Struck21.01 yd³
