Volvo
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

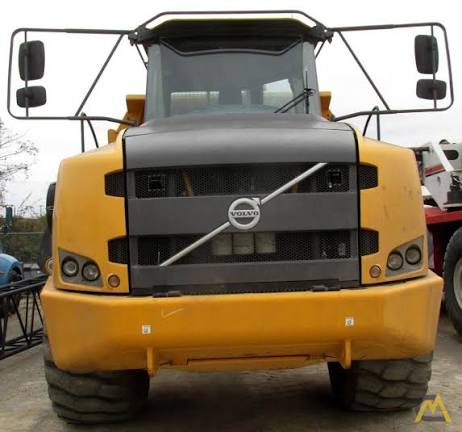

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Engine Oil Capacity | 14.3 gal |
|---|---|
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D13H-A |
|---|---|
| Power Measured @ | 1,800 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,050 rpm |
| Make | Volvo |
Weights
| Operating Weight | 153,880 lb |
|---|---|
| Total Empty | 67,902 lb |
| Front Axle - empty | 36,487 lb |
| Total Loaded | 153,883 lb |
| Rear Axle - empty | 31,416 lb |
| Front Axle - loaded | 45,195 lb |
| Rear Axle - loaded | 108,688 lb |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Overall Length | 444 in |
| Overall Width | 135 in |
| Dump Height | 288 in |
| Dump Ground Clearance | 33 in |
Transmission
| Max Speed | 35.0 mph |
|---|---|
| Transmission Type | PT2519 |
| Number of Forward Gears | 9 |
| Number of Reverse Gears | 3 |
Drive System
| Drive Config | 6x6 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 85,980 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 12.0 s |
| Lower Time | 10.0 s |
| Capacity - Heaped | 31.40 yd³ |
| Capacity - Struck | 24.11 yd³ |
