Volvo

EC140B LCM

Excavator

Operating Weight
33,400 lb
Max Digging Depth
197 in
Max Digging Depth
212 in
Net Power
93.0 hp
All excavators

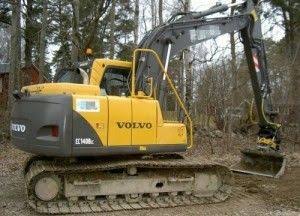

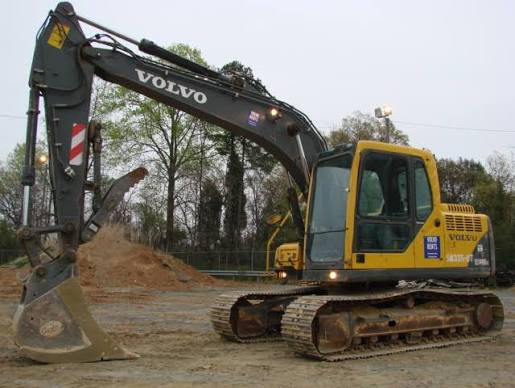

Volvo EC140B LCM Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

76 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,400 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity62.0 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity4.1 gal
Cooling System Fluid Capacity5.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD4D EBE2
Displacement244 in³
Power Measured @2,100 rpm
Gross Power98.0 hp
Net Power93.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque288 lb-ft

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab118 in
Length of Track on Ground119 in
Tail Swing Radius84 in
Width to Outside of Tracks107 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side6
Max Travel Speed2.7 mph
Shoe Size28 in
Number of Shoes per Side42
Number of Carrier Rollers per Side2
Drawbar Pull24,700 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth197 in
Max Reach Along Ground307 in
Max Loading Height233 in
Max Vertical Wall Digging Depth175 in
Max Cutting Height329 in
Shipping Length of Unit300 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth212 in
Max Vertical Wall Digging Depth193 in
Max Cutting Height339 in
Max Loading Height243 in
Max Reach Along Ground322 in
Shipping Length of Unit300 in
Shipping Height of Unit118 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth231 in
Max Cutting Height352 in
Max Loading Height256 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground342 in
Shipping Length of Unit299 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth193 in
Max Cutting Height371 in
Max Reach Along Ground311 in
Max Loading Height274 in
Max Vertical Wall Dig Depth163 in
Shipping Length of Unit301 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth204 in
Max Reach Along Ground326 in
Max Cutting Height385 in
Max Loading Height288 in
Max Vertical Wall Dig Depth214 in
Shipping Height of Unit119 in
Shipping Length of Unit300 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth229 in
Max Reach Along Ground347 in
Max Cutting Height403 in
Max Loading Height307 in
Max Vertical Wall Dig Depth199 in
Shipping Length of Unit293 in
Shipping Height of Unit133 in
