Volvo

EC140LCM

Excavator

Operating Weight
31,813 lb
Max Digging Depth
197 in
Max Digging Depth
212 in
Net Power
98.6 hp
All excavators

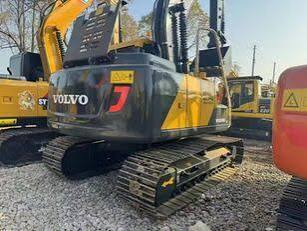

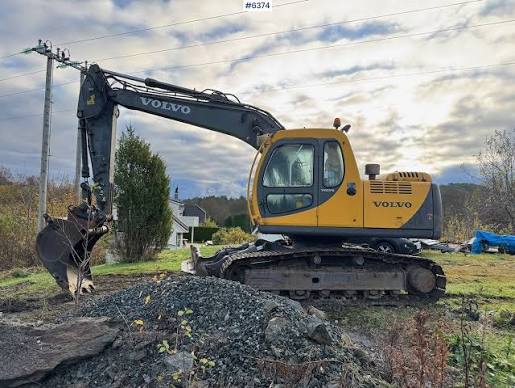

Volvo EC140LCM Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

73 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,813 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Fluid Capacity62.1 gal
Hydraulic System Relief Valve Pressure4,552 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity6.3 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB3.9-C
Displacement238 in³
Power Measured @2,100 rpm
Gross Power106.5 hp
Net Power98.6 hp
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque318 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab118 in
Length of Track on Ground119 in
Tail Swing Radius88 in
Width to Outside of Tracks107 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side6
Max Travel Speed3.5 mph
Shoe Size28 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth197 in
Max Reach Along Ground307 in
Max Loading Height233 in
Max Vertical Wall Digging Depth175 in
Max Cutting Height329 in
Shipping Length of Unit305 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth212 in
Max Vertical Wall Digging Depth193 in
Max Cutting Height339 in
Max Loading Height243 in
Max Reach Along Ground322 in
Shipping Length of Unit306 in
Shipping Height of Unit118 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth224 in
Max Cutting Height352 in
Max Loading Height256 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground342 in
Shipping Length of Unit305 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth197 in
Max Cutting Height329 in
Max Reach Along Ground307 in
Max Loading Height233 in
Max Vertical Wall Dig Depth175 in
Shipping Length of Unit306 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth212 in
Max Reach Along Ground322 in
Max Cutting Height339 in
Max Loading Height243 in
Max Vertical Wall Dig Depth193 in
Shipping Height of Unit115 in
Shipping Length of Unit302 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth231 in
Max Reach Along Ground342 in
Max Cutting Height352 in
Max Loading Height256 in
Max Vertical Wall Dig Depth210 in
Shipping Length of Unit298 in
Shipping Height of Unit131 in
