Volvo

EC210CLR

Excavator

Operating Weight
51,191 lb
Max Digging Depth
476 in
Net Power
147.6 hp
All excavators

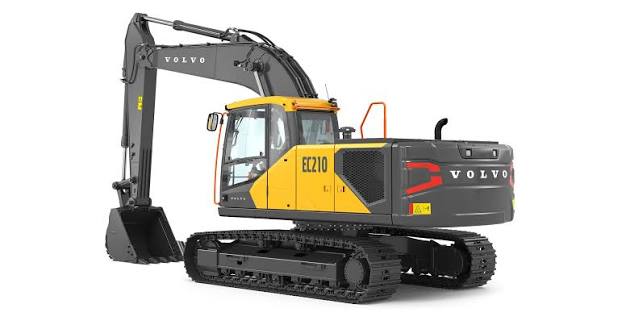

Volvo EC210CLR Excavator
1 / 5
Image 1 of 5
Image: amsparts.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,191 lb
Hydraulic Pump Flow Capacity105.7 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelD6E EAE3
Displacement348 in³
Power Measured @1,800 rpm
Net Power147.6 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground145 in
Tail Swing Radius110 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size32 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth476 in
Max Reach Along Ground619 in
Max Loading Height432 in
Max Vertical Wall Digging Depth524 in
Shipping Length of Unit505 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
