Volvo

EC220D

Excavator

Operating Weight
49,800 lb
Max Digging Depth
264 in
Net Power
174.0 hp
All excavators

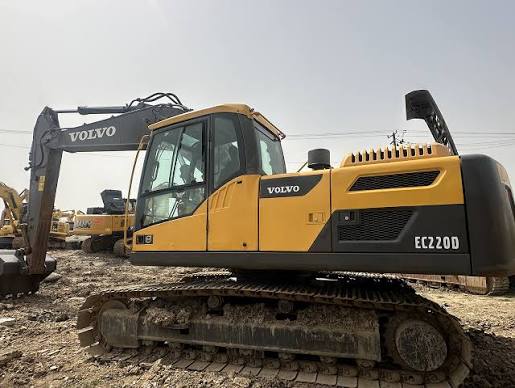

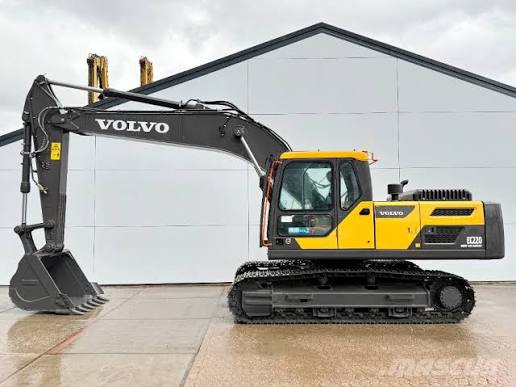

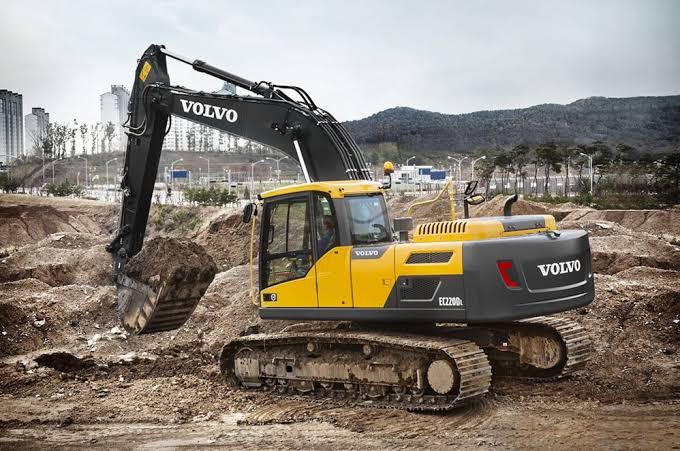

Volvo EC220D Excavator
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,800 lb
Fuel Capacity88.5 gal
Hydraulic System Fluid Capacity79.3 gal
Engine Oil Capacity8.5 gal
Cooling System Fluid Capacity10.9 gal

Engine

Engine specifications
Engine ModelD6H
Displacement348 in³
Power Measured @1,800 rpm
Gross Power175.0 hp
Net Power174.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground176 in
Tail Swing Radius113 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side2
Max Travel Speed3.5 mph
Number of Shoes per Side49
Number of Carrier Rollers per Side8
Drawbar Pull41,140 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground391 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
