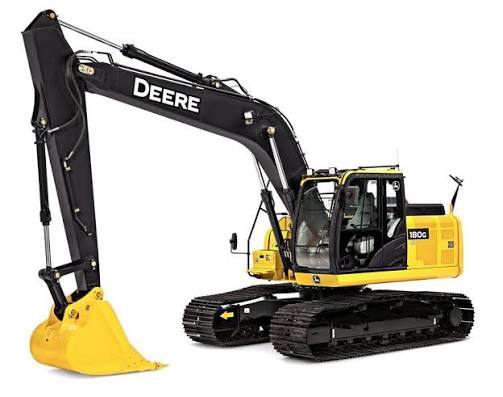

John Deere
180G LC
Excavator
4 specifications
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 75,260 lb |
|---|---|
| Fuel Capacity | 163.8 gal |
| Hydraulic Pump Flow Capacity | 158.6 gal/min |
| Hydraulic System Fluid Capacity | 132.1 gal |
| Hydraulic System Relief Valve Pressure | 5,120 psi |
| Engine Oil Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 15.9 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D13H |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 293.0 hp |
| Net Power | 283.0 hp |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 1,165 lb-ft |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 127 in |
| Length of Track on Ground | 168 in |
| Tail Swing Radius | 141 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 62,181 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 270 in |
|---|---|
| Max Reach Along Ground | 407 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 215 in |
| Max Cutting Height | 401 in |
| Shipping Length of Unit | 444 in |
| Shipping Height of Unit | 137 in |
Bucket
| Reference Bucket Capacity | 2.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 294 in |
|---|---|
| Max Vertical Wall Digging Depth | 231 in |
| Max Cutting Height | 408 in |
| Max Loading Height | 287 in |
| Max Reach Along Ground | 428 in |
| Shipping Length of Unit | 442 in |
| Shipping Height of Unit | 127 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 322 in |
|---|---|
| Max Cutting Height | 419 in |
| Max Loading Height | 299 in |
| Max Vertical Wall Digging Depth | 257 in |
| Max Reach Along Ground | 454 in |
| Shipping Length of Unit | 443 in |
| Shipping Height of Unit | 138 in |

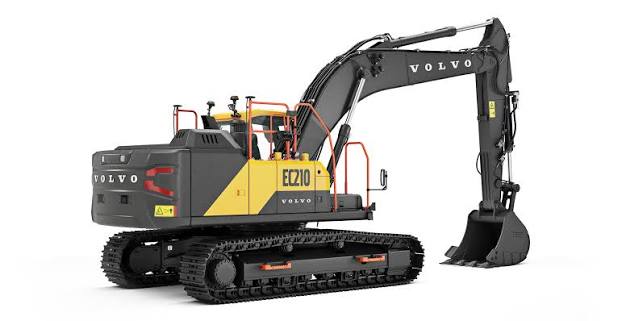

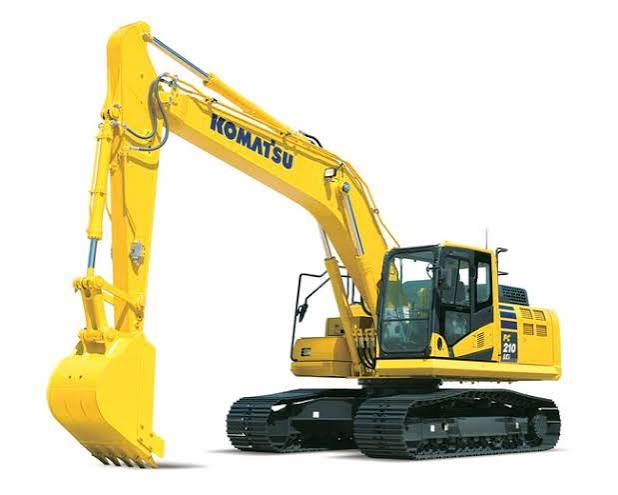

Comparable machines
