Volvo

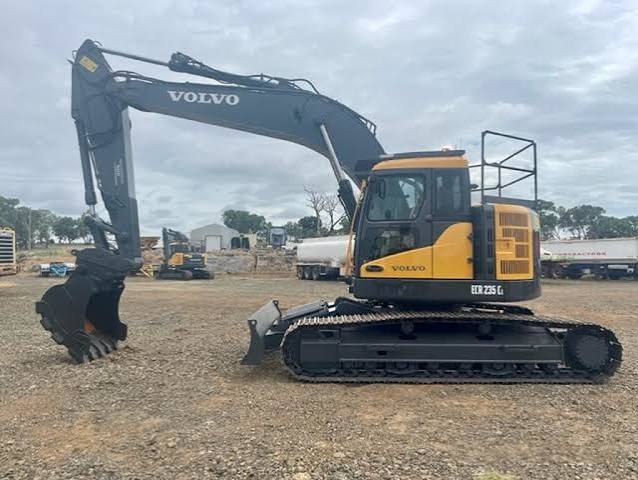

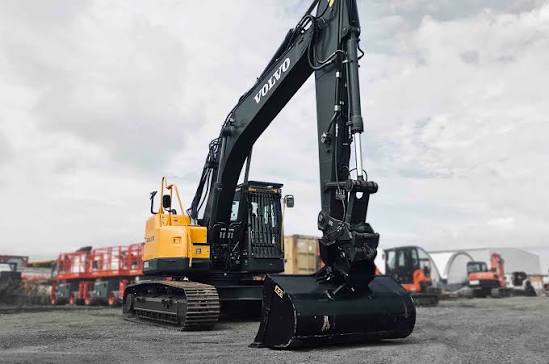

ECR235CL
- Operating Weight
- 56,070 lb
- Max Digging Depth
- 251 in
- Max Digging Depth
- 267 in
- Net Power
- 147.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 56,070 lb |
|---|---|
| Fuel Capacity | 85.9 gal |
| Hydraulic Pump Flow Capacity | 106.0 gal/min |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D6E EAE3 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 165.0 hp |
| Net Power | 147.0 hp |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,350 rpm |
| Max Torque | 546 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 122 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 44,980 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 251 in |
|---|---|
| Max Reach Along Ground | 369 in |
| Max Loading Height | 299 in |
| Max Vertical Wall Digging Depth | 202 in |
| Max Cutting Height | 418 in |
| Shipping Length of Unit | 357 in |
| Shipping Height of Unit | 128 in |
Bucket
| Reference Bucket Capacity | 1.60 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 267 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 431 in |
| Max Loading Height | 311 in |
| Max Reach Along Ground | 384 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 122 in |
