Volvo

ECR28

Mini Excavator

Operating Weight
6,012 lb
Max Digging Depth
95 in
Gross Power
19.3 hp
Net Power
18.3 hp
All mini excavators

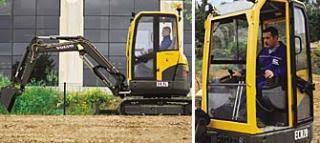

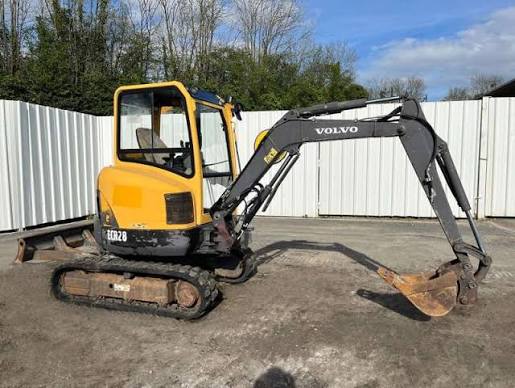

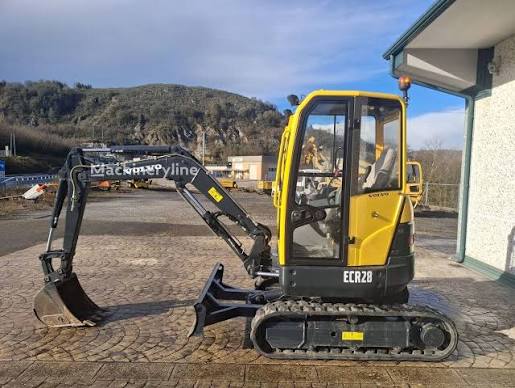

Volvo ECR28 Mini Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,012 lb
Fuel Capacity13.0 gal
Hydraulic Pump Flow Capacity17.0 gal/min
Hydraulic System Fluid Capacity9.8 gal
Hydraulic System Relief Valve Pressure3,046 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity0.9 gal
Cooling System Fluid Capacity1.1 gal

Engine

Engine specifications
Engine ModelD1.2
Displacement68 in³
Power Measured @2,200 rpm
Gross Power19.3 hp
Net Power18.3 hp
Number of Cylinders3
AspirationNatural
Torque Measured @1,600 rpm
Max Torque48 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab97 in
Length of Track on Ground57 in
Tail Swing Radius30 in
Width to Outside of Tracks60 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge50 in
Number of Track Rollers per Side3
Max Travel Speed2.4 mph
Shoe Size10 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth95 in
Max Reach Along Ground172 in
Max Vertical Wall Digging Depth72 in
Max Loading Height113 in
Shipping Length of Unit158 in
Max Cutting Height156 in
Shipping Height of Unit97 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth104 in
Max Cutting Height162 in
Max Loading Height118 in
Max Vertical Wall Digging Depth81 in
Max Reach Along Ground181 in
Shipping Height of Unit89 in
Shipping Length of Unit158 in
