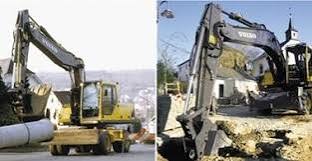

Image 1 of 5
Specifications
63 data points
Operating Specifications
| Operating Weight | 42,329 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Hydraulic Pump Flow Capacity | 12.5 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 5,221 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
| Hydraulic Pump Type | axial piston |
| Tire Size | 10.00-20 |
| Oscillating Axle Angle | 18 ° |
Engine
| Engine Model | D6D EFE2 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 160.0 hp |
| Net Power | 150.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,450 rpm |
| Net Torque | 489 lb-ft |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 103 in |
| Overall Width | 8 in |
| Tail Swing Radius | 97 in |
| Overall Width - Outriggers Down | 156 in |
Transmission
| Max Travel Speed | 21.8 mph |
|---|---|
| Transmission Type | powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 226 in |
|---|---|
| Max Cutting Height | 359 in |
| Max Reach Along Ground | 355 in |
| Max Loading Height | 252 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 124 in |
| Max Vertical Wall Dig Depth | 166 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 229 in |
|---|---|
| Max Cutting Height | 359 in |
| Max Reach Along Ground | 359 in |
| Max Loading Height | 252 in |
| Shipping Height of Unit | 131 in |
| Shipping Length of Unit | 347 in |
| Max Vertical Wall Dig Depth | 170 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 390 in |
| Max Reach Along Ground | 359 in |
| Max Loading Height | 276 in |
| Shipping Height of Unit | 121 in |
| Shipping Length of Unit | 347 in |
| Max Vertical Wall Dig Depth | 166 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 395 in |
| Max Reach Along Ground | 362 in |
| Max Loading Height | 280 in |
| Shipping Height of Unit | 124 in |
| Shipping Length of Unit | 347 in |
| Max Vertical Wall Dig Depth | 170 in |
