Volvo

G710 VHP

Motor Grader

Max Power
140.0 hp
All motor graders

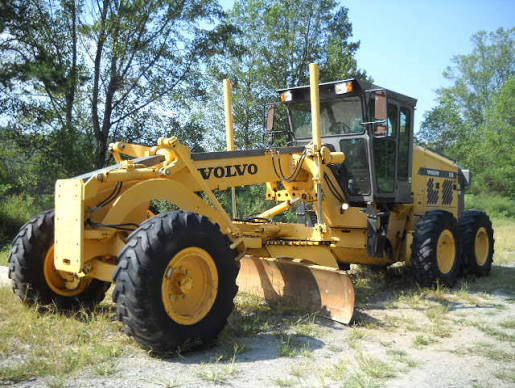

Volvo G710 VHP Motor Grader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total30,631 lb
Std Operation Weight - Front Axle9,401 lb
Std Operation Weight - Rear Axle21,231 lb

Engine

Engine specifications
Engine Model6B5.9
Displacement360 in³
Power Measured @2,200 rpm
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Power140.0 hp
Net Power Gear 1-2140.0 hp
Net Torque Gears 1-2440 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow50.5 gal/min
Pump Typeload sensing hydraulic
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase240 in
Overall Length333 in
Width Over Tires98 in
Blade Base103 in

Transmission

Transmission specifications
Max Speed - Forward24.8 mph
Max Speed - Reverse17.8 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypeVolvo 8400

Moldboard

Moldboard specifications
Moldboard Height25 in
Moldboard Width145 in
Moldboard Thickness1 in
Side Shift Left31 in
Side Shift Right31 in
Max Depth of Cut33 in
Blade Pull at Max Weight19,109 lb
Blade Down Pressure16,494 lb

Circle

Circle specifications
Diameter66 in
Rotation360 °

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance24 in

Steering System

Steering System specifications
Turning Radius306 in
Articulation Angle22 °
