Volvo

G780 VHP

Motor Grader

Max Power
235.0 hp
Net Power Gears 7-8
235.0 hp
All motor graders

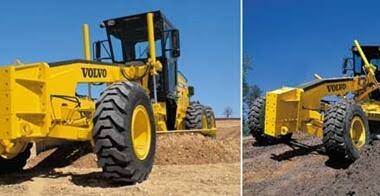

Volvo G780 VHP Motor Grader
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

54 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total42,743 lb
Tire Size16.00 x 24 G-2
Fuel Capacity100.0 gal
Std Operation Weight - Front Axle13,289 lb
Std Operation Weight - Rear Axle29,454 lb
Hydraulic System Fluid Capacity23.8 gal
Tandem Case Fluid Capacity (each)27.8 gal
Operating Voltage24 V
Cooling System Fluid Capacity13.3 gal
Alternator Supplied Amperage75 A
Transmission Fluid Capacity10.1 gal
Rear Diff/Final Drive Fluid Capacity9.0 gal

Engine

Engine specifications
Engine ModelM11
Displacement659 in³
Power Measured @2,100 rpm
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Power235.0 hp
Net Power Gears 7-8235.0 hp
Net Torque Gears 7-8845 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow48.4 gal/min
Pump Typeload sensing hydraulic
Relief Valve Pressure2,500 psi

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length343 in
Width Over Tires110 in
Height to Top of Isomount Cab126 in
Blade Base108 in

Transmission

Transmission specifications
Max Speed - Forward23.8 mph
Max Speed - Reverse17.0 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypePowershift

Moldboard

Moldboard specifications
Moldboard Height31 in
Moldboard Width168 in
Moldboard Thickness1 in
Side Shift Left27 in
Side Shift Right27 in
Max Depth of Cut33 in
Blade Pull at Max Weight26,507 lb
Blade Down Pressure23,485 lb

Circle

Circle specifications
Max Lift Above Ground17 in
Max Reach Outside Tires - Left91 in
Max Reach Outside Tires - Right91 in
Diameter67 in
Blade Tip Angle - Front46 °
Rotation360 °
Blade Tip Angle - Rear13 °
Shift Left30 in
Shift Right30 in

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total16 °
Ground Clearance28 in

Steering System

Steering System specifications
Articulation Angle22 °
